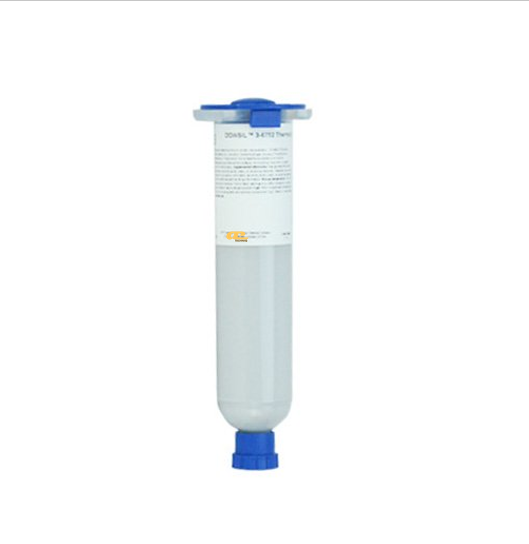

Item Name: DOWSIL™ 3-6752 Thermally Conductive Adhesive
Manufacturer: Dow
Technologies: One-part polydimethylsiloxane adhesive with thermally conductive fillers
Color: Gray
Cure Type: Heat cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
DOWSIL™ 3-6752 is a one-part, thixotropic, thermally conductive silicone adhesive that cures by heat without producing by-products. It combines high thermal conductivity (1.7 W/m·K) with UL 94 V-0 flame resistance, excellent dielectric properties, and strong adhesion to metals, ceramics, epoxy laminates, and filled plastics. Its thixotropic nature enables easy dispensing with controlled flow, while its primerless adhesion and rapid, temperature-controlled curing make it suitable for confined or deep-section bonding applications in demanding environments.
Bonding ceramic and organic substrates to heat sinks in electronic control modules.
Thermal management in automotive and consumer electronics assemblies.
Use as a thermal bridge to dissipate heat from devices to ambient through heat transfer media.
Applications requiring enhanced flame resistance and mechanical reliability under thermal cycling.
| Property | Unit | Result |
|---|---|---|
| Still Not Mixed (As Supplied) | ||
| One or Two Part | – | One part |
| Color | – | Gray |
| Viscosity | cP / Pa·s | 83,300 / 83.3 |
| Thixotropy | – | 3.9 |
| After Cured | ||
| Specific Gravity | – | 2.61 |
| Durometer | Shore A | 87 |
| Tensile Strength | psi / MPa | 545 / 3.8 |
| Elongation | % | 15 |
| Lap Shear Adhesion (Al, unprimed) | psi / MPa | 518 / 3.6 |
| Heat Cure Time @ 100 °C | minutes | 40 |
| Heat Cure Time @ 125 °C | minutes | 10 |
| Heat Cure Time @ 150 °C | minutes | 3 |
| Dielectric Strength | V/mil | 400 |
| Dielectric Constant @ 100 Hz / 100 kHz | – | 5.64 / 5.51 |
| Volume Resistivity | ohm·cm | 7.1 × 10¹³ |
| Dissipation Factor @ 100 Hz / 100 kHz | – | 0.007 / <0.0001 |
| Arc Track Resistance | seconds | 352 |
| Linear CTE (TMA) | ppm/°C | 138 |
| Thermal Conductivity | W/m·K | 1.7 |
| UL Flammability Rating | – | 94 V-0 |
| Service Temperature Range | °C | –45 to +200 (short-term to –55 °C) |
