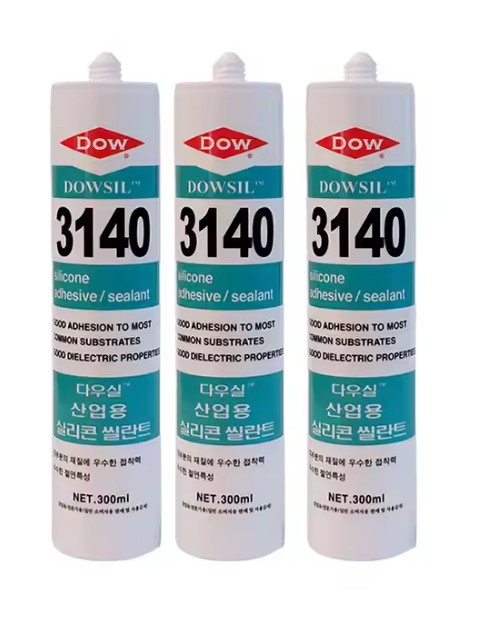

DOWSIL™ 3140 RTV Coating – Adhesive/Coating – Protection of electronic components and circuit boards

  • Item Name: DOWSIL™ 3140 RTV Coating
  • Manufacturer: Dow Chemical Company
  • Technologies: Polydimethylsiloxane adhesive
  • Color: Clear to slightly hazy smooth viscous liquid
  • Cure Type: Room temperature moisture cure
  • Package Size: Contact to Techniq VN for details.
  • Shelf Life: Contact to Techniq VN for details.

1. Product Overview

DOWSIL™ 3140 RTV Coating is a one-part, translucent silicone adhesive designed for coating and encapsulation applications. It offers good flowability, flame resistance, and self-leveling properties. The product is UL 94 V-1, IPC-CC-830, and MIL-I-46058C tested, making it suitable for electronic and industrial applications.

2. Applications

  • Protection of corrosion-sensitive components
  • Coating for rigid and flexible circuit boards
  • Improved pin/solder joint coverage
  • Thin-section encapsulation
  • Pin sealing

3. Typical Properties

Property Unit Result
Type One-part, RTV Silicone
Color Clear to slightly hazy
Viscosity cP (Pa-sec) 34,400 (34.4)
Specific Gravity (Cured) 1.05
Non-Volatile Content (NVC) % 95.7
Tack-Free Time (25°C) Minutes 116
Tensile Strength psi 434
Elongation % 419
Hardness Shore A 31.6
Tensile Modulus psi 103
Adhesion (180° Peel Strength) ppi 40
Dielectric Strength Volts/mil (kV/mm) 385 (15)
Volume Resistivity Ohm*cm 2.1 × 10¹⁴
Dielectric Constant (100 Hz, 100 kHz) 2.52
Dissipation Factor (100 Hz, 100 kHz) 0.004
Flammability Rating UL 94 V-1 @ 1.4 mm, UL 94-HB @ 1.9 mm
