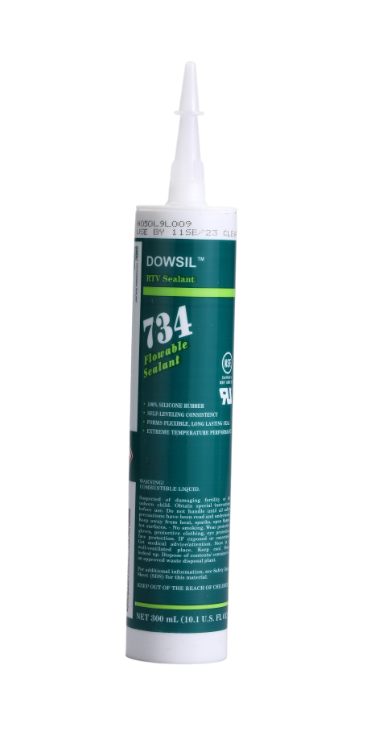

Item Name: DOWSIL™ 734 Flowable Sealant
Manufacturer: The Dow Chemical Company
Technologies: One-part, acetoxy cure silicone
Color: Clear, white
Cure Type: Room temperature moisture cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
DOWSIL™ 734 Flowable Sealant is a one-part, acetoxy-cure silicone adhesive/sealant that cures at room temperature upon exposure to moisture. It is self-leveling, flowable, and forms a tough yet flexible rubber. With excellent dielectric properties, broad temperature resistance from -65°C to +180°C, and compliance with MIL-A-46106, it is reliable for sealing and bonding in demanding industrial applications. Its fast tack-free time and strong adhesion to various substrates make it well suited for precision sealing and field repairs.
General industrial sealing and bonding requiring flowable material.
Fine joint sealing, cable entries, and connectors to ensure watertight protection.
Field repairs on existing silicone encapsulants due to good adhesion to silicone rubbers.
DOWSIL™ 734 offers balanced flowability, quick curing, and stable electrical performance. In its uncured state, it is a clear or white liquid with high viscosity and rapid skin-over time. Once cured, it becomes a moderately soft elastomer with good tensile strength, elongation, and tear resistance, while maintaining flexibility even at very low temperatures. It also exhibits excellent dielectric strength, low permittivity, and high volume resistivity, making it suitable for electrical and electronic sealing applications.
| Property | Unit | Result | Condition/Note |
|---|---|---|---|
| One/Two Part | – | One | – |
| Cure System | – | Acetoxy | – |
| Appearance | – | Flowable liquid | Uncured |
| Colors | – | Clear, White | – |
| Viscosity | mPa·s | 45,000 | 25°C |
| Skin-over Time | min | 7 | 25°C, 50% RH |
| Tack-free Time | min | 13 | – |
| Non-volatile Content | % | 95 | 24h at 70°C |
| Specific Gravity | – | 1.03 | Cured |
| Durometer Hardness | Shore A | 27 | Cured |
| Tensile Strength | MPa | 1.5 | Cured |
| Elongation at Break | % | 315 | Cured |
| Tear Strength | kN/m | 3.0 | Die B |
| Brittle Point | °C | -65 | – |
| Dielectric Strength | kV/mm | 17 | 7 days cure |
| Volume Resistivity | Ω·cm | 1×10¹⁵ | Cured |
| Permittivity | – | 2.7 (100 Hz & 100 kHz) | – |
| Dissipation Factor | – | 0.00034 (100 Hz), 0.00019 (100 kHz) | – |
| Temperature Range | °C | -65 to +180 | Long-term use |
