Product Overview

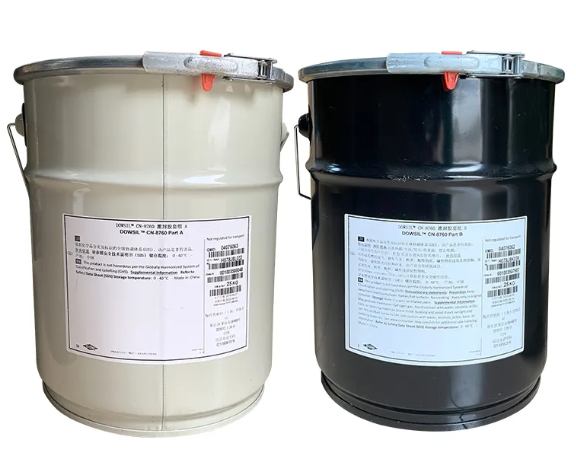

DOWSIL™ CN-8760 Thermally Conductive Encapsulant is a two-part silicone material designed for encapsulating electronic components. It features a 1:1 mixing ratio and can cure at room temperature or with heat, providing manufacturing flexibility. The cured product is a gray elastomer with moderate thermal conductivity, low viscosity, and good flowability, making it suitable for applications requiring efficient heat dissipation and fast processing times. Additionally, it is UL 94 V-0 certified, indicating excellent flame resistance.
Applications
DOWSIL™ CN-8760 is suitable for use in:
Typical Properties
| Property | Unit | Value |
|---|---|---|
| Color | – | Dark Gray |
| Viscosity (Part A) | cP (Pa·s) | 2,400 (2.4) |
| Viscosity (Part B) | cP (Pa·s) | 2,397 (2.4) |
| Viscosity (Mixed) | cP (Pa·s) | 2,850 (2.8) |
| Thermal Conductivity | W/m·K | 0.66 |
| Specific Gravity (Cured) | – | 1.60 |
| Working Time at 25°C (Pot Life) | minutes | 120 |
| Heat Cure Time at 50°C | minutes | 40 |
| Durometer | Shore A | 52 |
| Dielectric Strength | volts/mil (kV/mm) | 838 (33) |
| Volume Resistivity | ohm·cm | >1×10¹⁶ |
| Dissipation Factor at 100 Hz | – | 0.0173 |
| Dissipation Factor at 100 kHz | – | 0.0025 |
| Dielectric Constant at 100 Hz | – | 2.8287 |
| Dielectric Constant at 100 kHz | – | 2.7843 |
| Linear Coefficient of Thermal Expansion (CTE) | µm/m·°C (ppm) | 265 |
| UL 94 Flame Classification | – | V-0 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
