Brand: DOWSIL™ EA-9189 H is a one‐part, white alkoxy cure RTV adhesive marketed under the Dowsil brand by Dow.
Available Sizes: One commonly available format is a 330 mL cartridge.
Shelf Life: approximately 9 months.

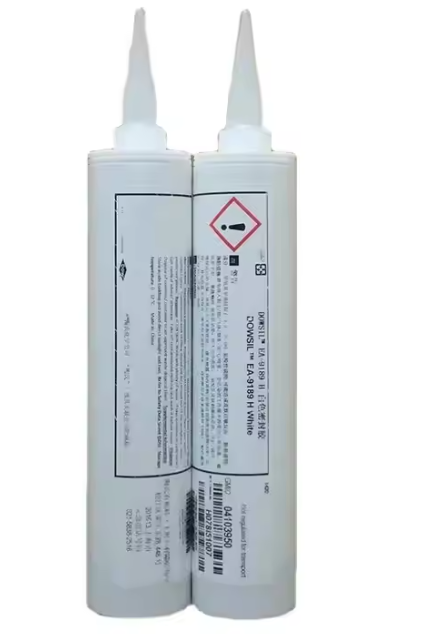

DOWSIL™ EA-9189 H White RTV Adhesive:
DOWSIL™ EA-9189 H White RTV Adhesive is a one-part, white, alkoxy-cure silicone adhesive. It offers ease of use with no mixing required and features a fast tack-free time of approximately 2 minutes. This adhesive is UL 94V-0 recognized, indicating its flame-retardant properties.
This adhesive is suitable for use as a module assembly adhesive, providing reliable bonding in electronic components and assemblies.
DOWSIL™ EA-9189 H White RTV Adhesive:
| Property | Unit | Value |
|---|---|---|
| Color | – | White |
| Specific Gravity (Cured) | – | 1.68 |
| Tack-Free Time at 25°C | minutes | 2 |
| Tensile Strength | psi (MPa) | 576 (3.9) |
| Elongation | % | 32 |
| Durometer (Shore A) | – | 80 |
| Unprimed Adhesion – Lap Shear to Aluminum | psi (MPa) | 327 (2.2) |
| Unprimed Adhesion – Lap Shear to Copper | psi (MPa) | 343 (2.3) |
| Unprimed Adhesion – Lap Shear to Polycarbonate (PC) | psi (MPa) | 187 (1.2) |
| Unprimed Adhesion – Lap Shear to FR4 | psi (MPa) | 349 (2.4) |
| Thermal Conductivity | W/m·K | 0.88 |
| Volume Resistivity | ohm·cm | 3.3 × 10¹⁵ |
| Dielectric Constant @ 100 kHz | – | 2.59 |
| Dissipation Factor @ 100 kHz | – | 0.009 |
| Dielectric Strength | volts/mil (kV/mm) | 700 (28) |
| UL Flammability Classification | – | 94V-0 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
