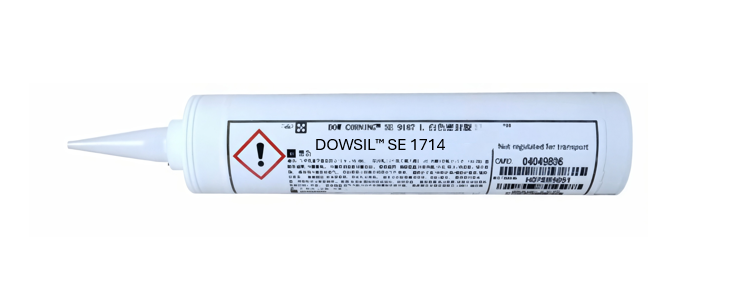

– Item Name: DOWSIL™ SE 1714 Beige or Black
– Manufacturer: Dow Chemical Company
– Technologies: One-part, flowable adhesive, heat cure, high tensile strength, no added solvents
– Color: Beige or Black
– Cure Type: Heat cure
– Package Size: Contact Techniq VN for details
– Shelf Life: 9 months
DOWSIL™ SE 1714 is a one-part, flowable adhesive available in beige or black. It offers high tensile strength and heat cure capability without added solvents. It is designed for rapid and versatile curing, controlled by temperature, and does not require mixing.
| Property | Unit | Value |
|---|---|---|
| Viscosity | cP | 58,800 |
| Specific Gravity | – | 1.30 |
| Heat Cure Time (150°C) | min | 30 |
| Property | Unit | Value |
|---|---|---|
| Tensile Strength | psi (MPa) | 1030 (7.1) |
| Elongation | % | 230 |
| Tensile Modulus | psi (MPa) | 450 (3.1) |
| Durometer Hardness | Shore A (JIS) | 66 |
| Lap Shear Adhesion (Aluminum) | psi (MPa) | 790 (5.5) |
| Lap Shear Adhesion (Glass) | psi (MPa) | 810 (5.6) |
| Lap Shear Adhesion (FR4) | psi (MPa) | 610 (4.2) |
| Lap Shear Adhesion (PPS) | psi (MPa) | 500 (3.5) |
| Dielectric Strength | Volts/mil (kV/mm) | 750 (30) |
| Volume Resistivity | ohm*cm | 5.0E+15 |
| Dielectric Constant (1 MHz) | – | 3.1 |
| Dissipation Factor (1 MHz) | – | 0.0028 |
| Thermal Conductivity | W/mK | 0.3 |
| Operating Temperature | °C | -45 to 200 |
| Shelf Life (@5°C) | months | 9 |
