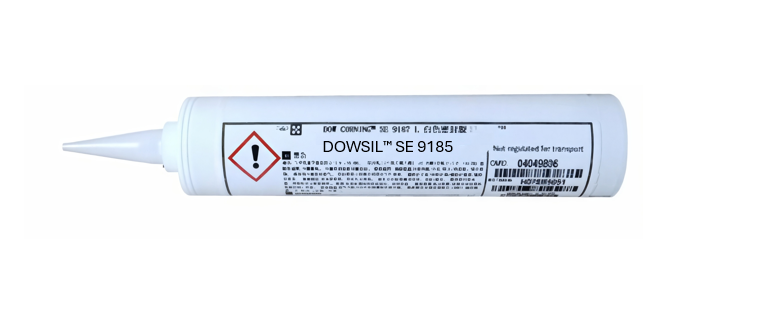

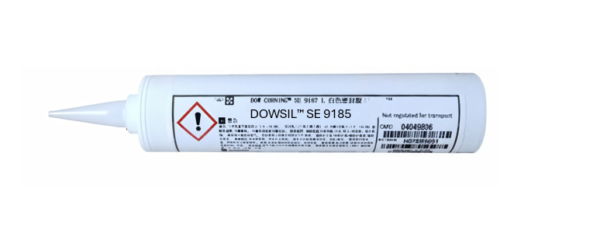

-Item Name: DOWSIL™ SE 9185 Clear or White Adhesive
-Manufacturer: Dow
-Technologies: One-part polydimethylsiloxane
-Color: Clear or White
-Cure Type: Room temperature moisture cure
-Package Size: Contact to Techniq VN for details.
-Shelf Life: Contact to Techniq VN for details.
DOWSIL™ SE 9185 is a one-part, non-flowing, fast tack-free adhesive with controlled volatility. It is available in clear or white and is based on polydimethylsiloxane. It cures at room temperature with the option for heat acceleration, eliminating the need for ovens.
Property | Unit | Value |
---|---|---|
One-part or Two-part | – | One-part |
Color | – | Clear or White |
Specific Gravity (Cured) | – | 1.05 |
Tack-Free Time (25°C) | minutes | 8 |
Tensile Strength | psi / MPa / kg/cm² | 435 / 3 / 30 |
Elongation | % | 515 |
Hardness | Shore A | 31 |
Lap Shear Adhesion (Glass) | N/cm² | 120 |
Dielectric Strength | volts/mil / kV/mm | 550 / 22 |
Volume Resistivity | ohm*cm | 2.0 × 10¹⁶ |
Dielectric Constant (1MHz) | – | 2.8 |
Dissipation Factor (1MHz) | – | 0.0007 |
Low Molecular Siloxane (D4-D10) | ppm | 25 |
Low Molecular Siloxane (D4-D20) | ppm | 200 |
Electric Motor Reliability with Huntsman ARALDITE® Encapsulation Potting – Casting
Araldite® LY 8615 / Aradur® 8615 Composite Wheels-aerospace-grade composite parts
Araldite®/Aradur 917-1/Accel 960-1, Araldite®/Aradur 1571, and LY3508/Aradur 3478 – Systems for Composite Pressure Vessels
Araldite® CW 30334 CI / Aradur® HW 30335 CI Encapsulation for motor stators, transformer coils, and high-voltage devices
