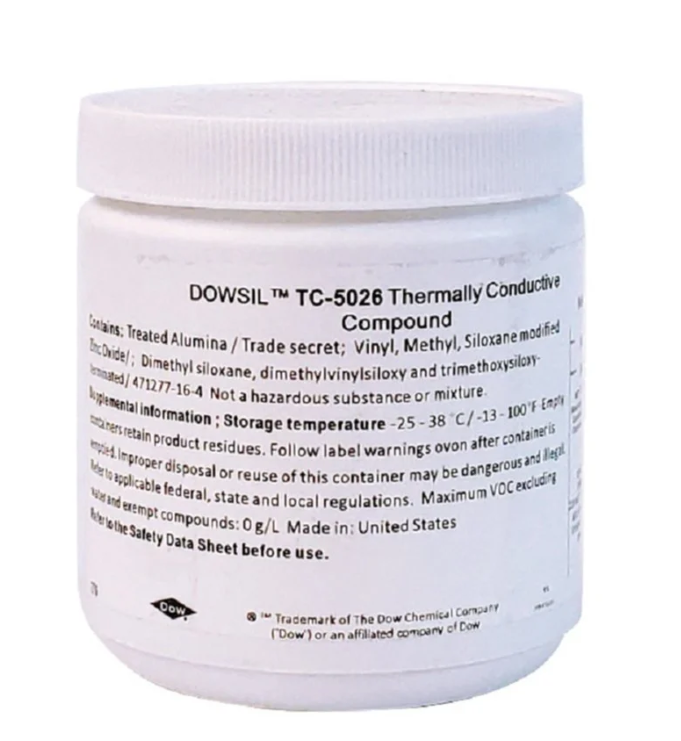

Brand Name: DOWSIL™ TC-5026 Thermally Conductive Compound
Package Size: Available in 1 kg bottles and 25 kg pails.
Shelf Life: 720 days (approximately 24 months) from the date of manufacture.
DOWSIL™ TC-5026 Thermally Conductive Compound is a one-part, gray, non-curing silicone-based material engineered to facilitate efficient heat dissipation in electronic components. Its solvent-free formulation ensures material stability over time, eliminating the need for curing ovens. The compound is designed to achieve ultra-thin bond line thicknesses (BLT) at low pressure, resulting in very low thermal resistance and high thermal conductivity. These properties make it particularly suitable for cooling microprocessor units (MPUs) in servers, desktops, notebooks, and game consoles.
Applications
DOWSIL™ TC-5026 is specifically designed for thermal management in electronic devices, including:
Its properties make it ideal for applications where efficient thermal transfer is critical to device performance and longevity.
DOWSIL™ TC-5026 Thermally Conductive Compound
Typical Properties
The following table summarizes the key properties of DOWSIL™ TC-5026:
| Property | Unit | Value |
|---|---|---|
| Color | — | Gray |
| Viscosity | cP (mPa·s) | 100,000 |
| Specific Gravity (Uncured) | — | 3.5 |
| Non-Volatile Content | % | 99.95 |
| Thermal Conductivity | W/m·K | 2.9 |
| Thermal Resistance at 40 psi | °C·cm²/W | 0.03 |
| Bond Line Thickness at 40 psi | mm (inch) | 0.007 (0.0003) |
| Dielectric Strength | volts/mil (kV/mm) | 227 (8.9) |
| Volume Resistivity | ohm·cm | 5.9 × 10¹¹ |
| Dielectric Constant at 1 kHz | — | 7.4 |
| Dissipation Factor at 1 kHz | — | 0.0003 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
