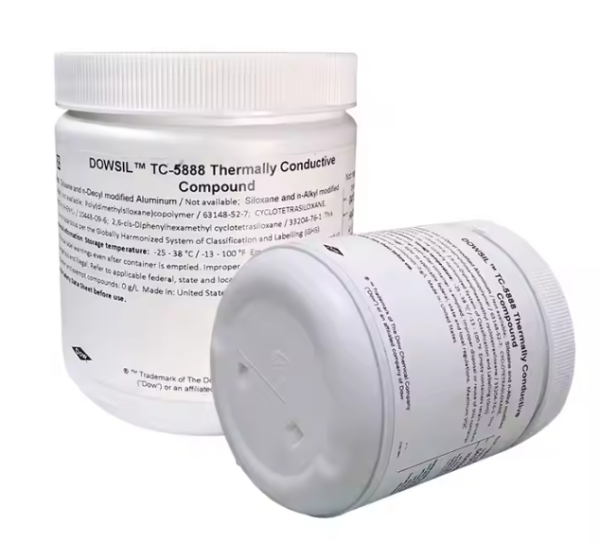

Brand Name: DOWSIL™ TC-5888 Thermally Conductive Compound
Package Size: Available in 1 kg cans and 140 kg drums.
Shelf Life: 12 months from the date of manufacture.
DOWSIL™ TC-5888 Thermally Conductive Compound is a one-part, gray, non-curing silicone-based material engineered to facilitate efficient heat dissipation in electronic components. Its thixotropic nature ensures low slump, making it ideal for applications requiring precise material placement. The solvent-free formulation maintains material stability over time, allowing for consistent performance without the need for curing.
Applications
This thermally conductive compound is specifically designed for:
Its properties make it suitable for screen printing, stencil printing, and dispensing methods, ensuring versatility in various manufacturing processes.
Typical Properties
| Property | Unit | Value |
|---|---|---|
| Color | — | Gray |
| One-Part Material | — | Non-curing |
| Viscosity at Low Strain Rate | Pa·s | 1,200 |
| Viscosity at High Strain Rate | Pa·s | 100 |
| Specific Gravity | — | 2.6 |
| Volatile Content (48 hours at 125°C) | % | 0.02 |
| Thermal Conductivity | W/m·K | 5.2 |
| Thermal Resistance at 25 N/cm² | °C·cm²/W | 0.05 |
| Bond Line Thickness at 25 N/cm² | mm (inch) | 0.02 (0.0008) |
