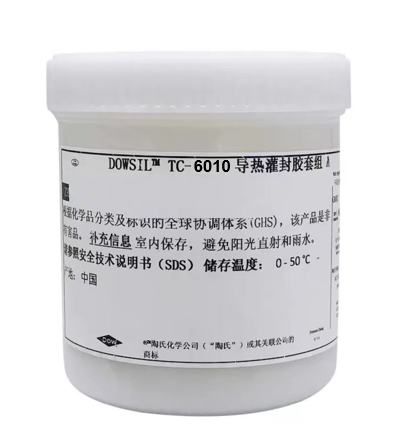

Brand Name: DOWSIL™ TC-6010 Thermally Conductive Encapsulant
Available Sizes: as 1 kg cans, with larger sizes (e.g., 5 kg or more).
Shelf Life: The exact shelf life is not specified in the available documentation.
DOWSIL™ TC-6010 Thermally Conductive Encapsulant is a two-part, flowable silicone elastomer designed to provide efficient heat dissipation and protection for electronic components. It cures with heat to form an elastic, thermally conductive rubber, making it ideal for applications such as on-board chargers, inverters, converters, transformers, and other electronic and electric components.
Applications:
Typical Properties:
| Property | Unit | Value |
|---|---|---|
| Mixing Ratio (by weight) | 1:1 | |
| Color (Part A/B) | White/Blue | |
| Viscosity (Part A / Part B / Mixed) | mPa·s | 2400 / 2400 / 2700 |
| Heat Cure Time at 60°C | minutes | 60 |
| Heat Cure Time at 100°C | minutes | 30 |
| Specific Gravity (Part A / Part B) | 1.67 / 1.66 | |
| Specific Gravity (Cured) | 1.67 | |
| Pot Life at 25°C | hours | 2.5 |
| Hardness | Shore A | 37 |
| Adhesion Strength on Aluminum at 60°C | MPa | 0.21 |
| Adhesion Strength on Aluminum at 100°C | MPa | 0.23 |
| Thermal Conductivity | W/m·K | 1.2 |
| Tensile Strength | MPa | 0.93 |
| Elongation | % | 50 |
| Shear Modulus by DMA at 25°C | MPa | 3.3 |
| Dielectric Strength | kV/mm | 22 |
| Volume Resistivity | Ohm·cm | 3.20E+12 |
| Coefficient of Thermal Expansion (CTE) | ppm/K | 174 |
| Dielectric Constant at 100 Hz | 2.40 | |
| Dielectric Constant at 100 kHz | 2.75 | |
| Dissipation Factor at 100 Hz | 0.0035 | |
| UL 94 Flammability Classification | V-0 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
