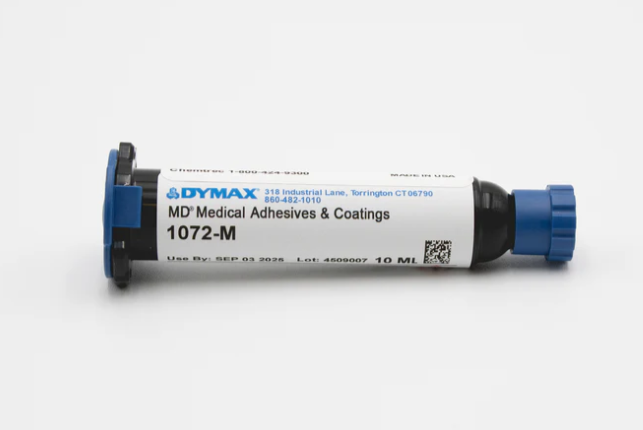

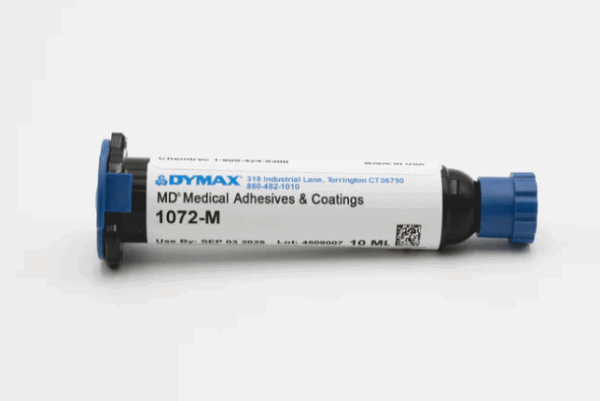

Item Name: Dymax MD® 1072-M
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive, solvent-free, engineered for high-strength medical device bonding
Color: Clear, blue fluorescing under UV inspection light
Cure Type: UV/Visible light cure
Package Size: Contact to Techniq VN for details.
Shelf Life: 12 months
Dymax MD® 1072-M is a flexible, UV/Visible light-curable adhesive specifically designed for medical device assembly. The product is solvent-free, cures rapidly under appropriate light sources, and demonstrates strong adhesion to a wide range of medical-grade substrates. It is formulated to withstand sterilization processes and fluoresces minimally, making it suitable for applications where optical clarity is required. This adhesive is fully compliant with RoHS Directive 2015/863/EU
MD® 1072-M is widely applied in the assembly of:
Medical devices requiring durable bonding of plastics and metals
Components exposed to sterilization processes
Flexible bonding applications within disposable healthcare products
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Light Yellow Transparent Liquid | N/A | |
| Density (g/ml) | 1.06 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | 1,200 (nominal) | ASTM D1084 | |
| Shelf Life (at 10–32 °C) | 12 months | N/A | |
| Cured Mechanical | Durometer Hardness | D65 | ASTM D2240 |
| Tensile Strength (MPa [psi]) | 12 [1,700] | ASTM D638 | |
| Elongation at Break (%) | 120 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | 240 [35,000] | ASTM D638 | |
| Other Cured Properties | Refractive Index (20 °C) | 1.50 | ASTM D542 |
| Boiling Water Absorption (2 h, %) | 4.0 | ASTM D570 | |
| Water Absorption (25 °C, 24 h, %) | 2.5 | ASTM D570 | |
| Linear Shrinkage (%) | 0.5 | ASTM D2566 | |
| Glass Transition Temperature (Tg, °C) | 60 | ASTM D5418 |
