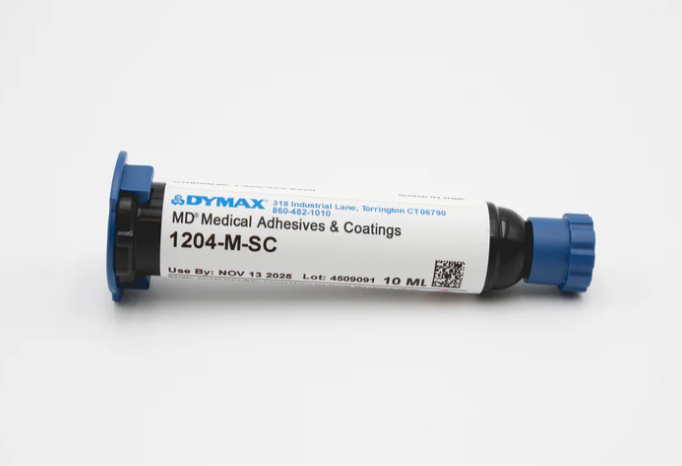

Item Name: Dymax MD® 1204-M-SC
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive with See-Cure color change and Ultra-Red® fluorescence technology
Color: Blue (uncured), colorless after cure with Ultra-Red® fluorescence
Cure Type: UV/Visible light cure
Package Size: Contact to Techniq VN for details.
Shelf Life: 12 months
Dymax MD® 1204-M-SC is a flexible, solvent-free adhesive developed for bonding PVC and other medical plastics. The material incorporates See-Cure® technology, which allows visual confirmation of adhesive placement and cure: it appears blue when dispensed and transitions to colorless upon full cure. Designed for use with UV/Visible light curing systems, it ensures rapid processing and high production efficiency. This product complies fully with RoHS Directive 2015/863/EU.
The adhesive is primarily recommended for medical device assemblies, including:
Tube sets and fittings
Tracheal tube
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Blue Transparent Liquid | N/A | |
| Density (g/ml) | 1.06 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | 1,800 (nominal) | ASTM D1084 | |
| Shelf Life (at 10–32 °C) | 12 months | N/A | |
| Cured Mechanical | Durometer Hardness | D55 | ASTM D2240 |
| Tensile Strength (MPa [psi]) | 7.6 [1,100] | ASTM D638 | |
| Elongation at Break (%) | 210 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | 48 [7,000] | ASTM D638 | |
| Other Cured Properties | Refractive Index (20 °C) | 1.52 | ASTM D542 |
| Boiling Water Absorption (2 h, %) | 3.7 | ASTM D570 | |
| Water Absorption (25 °C, 24 h, %) | 3.0 | ASTM D570 | |
| Linear Shrinkage (%) | 0.4 | ASTM D2566 | |
| Glass Transition Temperature (Tg, °C) | 68 | ASTM D5418 |
