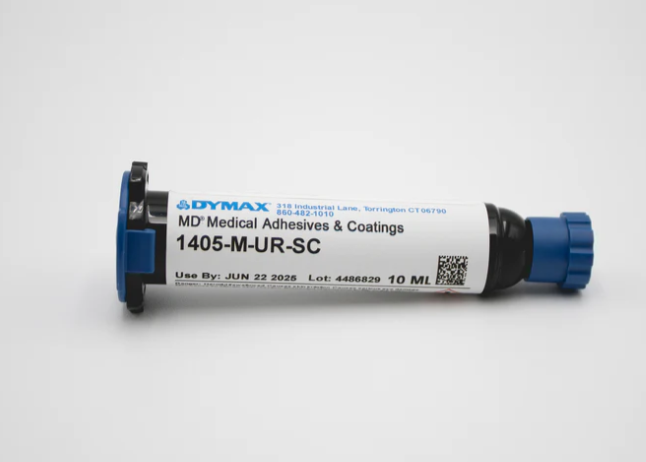

Item Name: Dymax MD® 1405-M-UR-SC
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive with Ultra-Red® fluorescing and See-Cure color change technology
Color: Blue (uncured), colorless after cure with Ultra-Red® fluorescence
Cure Type: UV/Visible light cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Dymax MD® 1405-M-UR-SC is an LED-optimized, medical-grade adhesive formulated with Encompass® technology, which uniquely integrates See-Cure® (blue-to-colorless transition) and Ultra-Red® fluorescing capabilities. This dual system allows for both visual confirmation of adhesive placement and post-cure bond-line inspection, ensuring robust process validation. Designed for 385 nm and 405 nm LED curing systems, the adhesive provides rapid, deep-section curing while maintaining biocompatibility. It contains no nonreactive solvents and complies fully with RoHS Directive 2015/863/EU.
The product is engineered for critical medical device assemblies, particularly where verification of adhesive placement and reliability of cure are essential. Key uses include:
Syringes
Blood transfer devices
Winged infusion sets
Collection sets
Dialyzers
Combination devices
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Blue Transparent Liquid | N/A | |
| Density (g/ml) | 1.05 | ASTM D1875 | |
| Viscosity (cP) | 150 (nominal) | DSTM 502‡ | |
| Shelf Life (at 10–32 °C) | 8 months | N/A | |
| Cured Mechanical | Durometer Hardness | D70 | ASTM D2240 |
| Tensile Strength (MPa [psi]) | 18.6 [2,700] | ASTM D638 | |
| Elongation at Break (%) | 150 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | 397 [57,600] | ASTM D638 | |
| Other Cured Properties | Appearance (after cure) | Colorless | N/A |
| Refractive Index (20 °C) | 1.51 | ASTM D542 | |
| Boiling Water Absorption (2 h, %) | 4.4 | ASTM D570 | |
| Water Absorption (25 °C, 24 h, %) | 3.2 | ASTM D570 | |
| Linear Shrinkage (%) | 0.4 | ASTM D2566 | |
| Glass Transition Temperature (Tg, °C) | 99 | ASTM D5418 | |
| CTE (α1, mm/m/°C) | 72 | ASTM E831 | |
| CTE (α2, mm/m/°C) | 280 | ASTM E831 |
‡ DSTM = Dymax Standard Test Method
