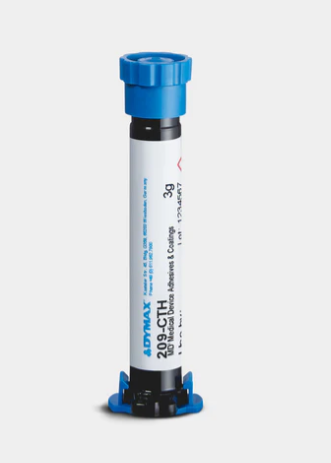

Item Name: Dymax MD® 209-CTH
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive, solvent-free, designed for multipurpose catheter and medical bonding
Color: Light yellow transparent liquid, blue fluorescing under black light (365 nm)
Cure Type: UV/Visible light cure
Package Size: Contact to Techniq VN for details.
Shelf Life: 10 months
Dymax MD® 209-CTH is a multipurpose, UV/Visible light-curable catheter bonding adhesive designed for rapid assembly of both flexible and rigid medical plastics. It contains no nonreactive solvents, cures in seconds under Dymax UV/Visible lamps, and fluoresces blue under low-intensity black light (365 nm) to facilitate in-line inspection. The adhesive provides strong, flexible bonds and is fully compliant with RoHS Directive 2015/863/EU.
The product is widely used in the manufacture of medical catheters and devices, particularly for:
Manifold-to-lumen bonding
Hypotube-to-hub bonding
Balloon-to-lumen bonding
General catheter assembly
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Light Yellow Transparent Liquid | N/A | |
| Density (g/ml) | 1.05 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | 300 (nominal) | ASTM D1084 | |
| Shelf Life (at 10–32 °C) | 10 months | N/A | |
| Cured Mechanical | Durometer Hardness | D70 | ASTM D2240 |
| Tensile Strength (MPa [psi]) | 17 [2,500] | ASTM D638 | |
| Elongation at Break (%) | 120 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | 300 [44,000] | ASTM D638 | |
| Other Cured Properties | Refractive Index (20 °C) | 1.51 | ASTM D542 |
| Boiling Water Absorption (2 h, %) | 4.4 | ASTM D570 | |
| Water Absorption (25 °C, 24 h, %) | ~3.0 (typical) | ASTM D570 | |
| Biocompatibility | ISO 10993-4 Hemolysis | Pass | ISO 10993 |
| ISO 10993-5 Cytotoxicity | Pass | ISO 10993 | |
| ISO 10993-6 Implantation | Pass | ISO 10993 | |
| ISO 10993-10 Intracutaneous | Pass | ISO 10993 | |
| ISO 10993-11 Systemic Toxicity | Pass | ISO 10993 |
