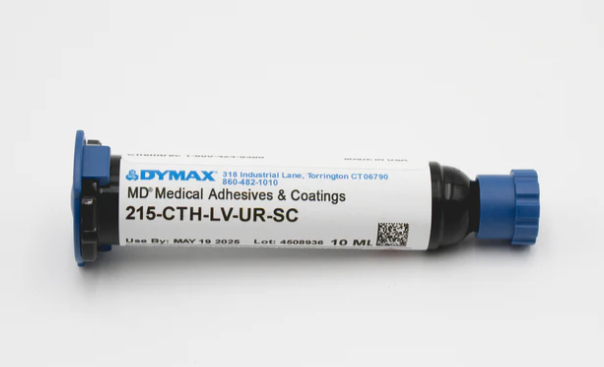

Item Name: Dymax MD® 215-CTH-LV-UR-SC
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive with Encompass® technology combining See-Cure and Ultra-Red® fluorescing
Color: Blue before cure, becomes colorless when fully cured, Ultra-Red® fluorescence for post-cure inspection
Cure Type: UV/Visible light cure, LED optimized (385 nm preferred)
Package Size: Contact to Techniq VN for details.
Shelf Life: 7 months
Dymax MD® 215-CTH-LV-UR-SC is an LED-curable adhesive specially formulated for difficult-to-bond plastics such as Nylon 12, PEBA, PET, and TPU. It incorporates Encompass® technology, which combines See-Cure® (blue-to-colorless visual cure indicator) with Ultra-Red® fluorescing for post-cure inspection. This dual capability ensures accurate adhesive placement, easy visual cure confirmation, and reliable in-line quality control. It is solvent-free, cures in seconds under LED or UV light, and is fully compliant with RoHS Directive 2015/863/EU .
The adhesive is designed for next-generation catheter assemblies and related medical devices, including:
Balloon-to-lumen bonding
Hub-to-lumen bonding
Marker band attachment
Manifold bonding
General catheter construction
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Blue Translucent Liquid | N/A | |
| Density (g/ml) | 1.01 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | 18,000 (nominal) | DSTM 520‡ | |
| Shelf Life (10–32 °C) | 7 months | N/A | |
| Cured Mechanical | Durometer Hardness | D55 | ASTM D2240 |
| Tensile Strength (MPa [psi]) | 15.1 [2,200] | ASTM D638 | |
| Elongation at Break (%) | 360 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | 165 [24,000] | ASTM D638 | |
| Other Cured Properties | Refractive Index (20 °C) | 1.49 | ASTM D542 |
| Boiling Water Absorption (2 h, %) | 4.7 | ASTM D570 | |
| Water Absorption (25 °C, 24 h, %) | 11.3 | ASTM D570 | |
| Linear Shrinkage (%) | 1.2 | ASTM D2566 | |
| Glass Transition Temperature (Tg, °C) | 76 | ASTM D5418 | |
| CTE α1 (mm/m/°C) | 154 | ASTM E831 | |
| CTE α2 (mm/m/°C) | 252 | ASTM E831 |
‡ DSTM = Dymax Standard Test Method
