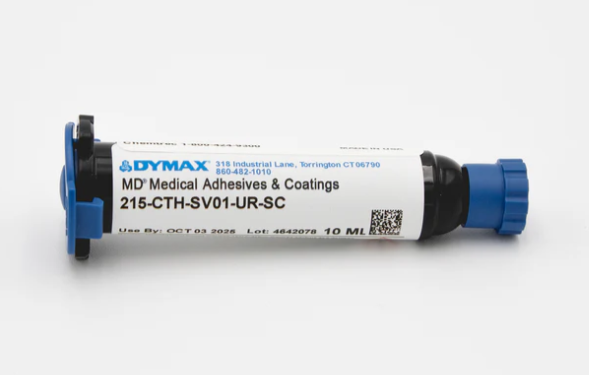

Item Name: Dymax MD® 215-CTH-SV01-UR-SC
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive featuring Encompass® technology (See-Cure + Ultra-Red® fluorescing)
Color: Blue before cure, turns colorless after cure with Ultra-Red® fluorescence for inspection
Cure Type: UV/Visible light cure, LED optimized at 385 nm
Package Size: Contact to Techniq VN for details.
Shelf Life: 7 months
Dymax MD® 215-CTH-SV01-UR-SC is an LED-curable medical adhesive formulated with Encompass® technology, integrating See-Cure® (blue-to-colorless visual cure indicator) and Ultra-Red® fluorescing features. This ensures precise adhesive placement, rapid cure validation, and reliable post-cure inspection. The adhesive is optimized for LED curing at 365 nm and 385 nm, with full compliance to RoHS Directive 2015/863/EU. It contains no nonreactive solvents and is intended for short-term (<29 days) or single-use disposable medical devices .
The adhesive is designed for catheter and medical device assemblies, including:
Balloon-to-lumen bonding
Hub-to-lumen bonding
Marker band attachment
Manifold bonding
General catheter construction
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Blue Transparent Liquid | N/A | |
| Density (g/ml) | ~1.05 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | Medium viscosity (nominal) | ASTM D1084 | |
| Shelf Life (10–32 °C) | 12 months | N/A | |
| Cured Mechanical | Durometer Hardness | D65–70 (typical) | ASTM D2240 |
| Tensile Strength (MPa [psi]) | ~15–20 [2,200–2,900] | ASTM D638 | |
| Elongation at Break (%) | ~100–150 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | ~400 [58,000] | ASTM D638 | |
| Other Cured Properties | Appearance (after cure) | Colorless | N/A |
| Fluorescence | Bright Red (Ultra-Red®) | N/A | |
| Glass Transition Temperature (Tg, °C) | ~90–100 | ASTM D5418 | |
| Shrinkage (%) | Low (<0.5) | ASTM D2566 | |
| Accelerated Aging Data | PC–PC Lap Shear @ 54 °C | Maintained ≥100% strength for 79 days (≈24 months real-time equivalent) | ASTM F1980 |
