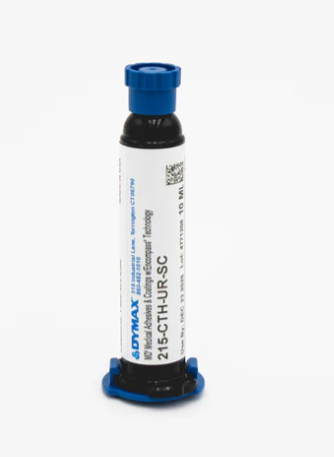

Item Name: Dymax MD® 215-CTH-UR-SC
Manufacturer: Dymax Corporation
Technologies: Light-curable acrylated urethane adhesive with Encompass® technology, combining See-Cure and Ultra-Red® fluorescing
Color: Blue (uncured), transitions to colorless when cured, Ultra-Red® fluorescence under inspection light
Cure Type: UV/Visible light cure, LED curable (385 nm preferred)
Package Size: Contact to Techniq VN for details.
Shelf Life: 7 months
Dymax MD® 215-CTH-UR-SC is an LED-curable medical adhesive that incorporates Encompass® Technology, which integrates See-Cure® (blue-to-colorless visual cure indicator) and Ultra-Red® fluorescing features. This dual system enables both real-time visual confirmation of adhesive placement and reliable post-cure bond-line inspection. The product is specifically designed for difficult-to-bond plastics such as Nylon 12 and PEBA, making it particularly valuable in advanced catheter manufacturing. It is solvent-free, cures rapidly under LED/UV light, and is fully compliant with RoHS Directive 2015/863/EU .
The adhesive is engineered for next-generation catheter and medical device assemblies, including:
Balloon-to-lumen bonding
Hub-to-lumen bonding
Marker band attachment
Manifold bonding
General catheter assembly
| Category | Property | Value | Test Method |
|---|---|---|---|
| Uncured | Solvent Content | No Nonreactive Solvents | N/A |
| Chemical Class | Acrylated Urethane | N/A | |
| Appearance | Blue Transparent Liquid | N/A | |
| Density (g/ml) | ~1.05 | ASTM D1875 | |
| Viscosity (cP, 20 rpm) | Medium viscosity (nominal, dispensing grade) | ASTM D1084 | |
| Shelf Life (10–32 °C) | 12 months | N/A | |
| Cured Mechanical | Durometer Hardness | D65–70 (typical) | ASTM D2240 |
| Tensile Strength (MPa [psi]) | ~15–20 [2,200–2,900] | ASTM D638 | |
| Elongation at Break (%) | ~100–150 | ASTM D638 | |
| Modulus of Elasticity (MPa [psi]) | ~400 [58,000] | ASTM D638 | |
| Other Cured Properties | Appearance (after cure) | Colorless | N/A |
| Fluorescence | Bright Red (Ultra-Red®) | N/A | |
| Glass Transition Temperature (Tg, °C) | ~90–100 | ASTM D5418 | |
| Shrinkage (%) | Low (<0.5) | ASTM D2566 | |
| Refractive Index (20 °C) | ~1.51 | ASTM D542 | |
| Biocompatibility | ISO 10993-4 Hemolysis | Pass | ISO 10993 |
| ISO 10993-5 Cytotoxicity | Pass | ISO 10993 | |
| ISO 10993-6 Implantation | Pass | ISO 10993 | |
| ISO 10993-10 Intracutaneous | Pass | ISO 10993 | |
| ISO 10993-11 Systemic Toxicity | Pass | ISO 109 |
