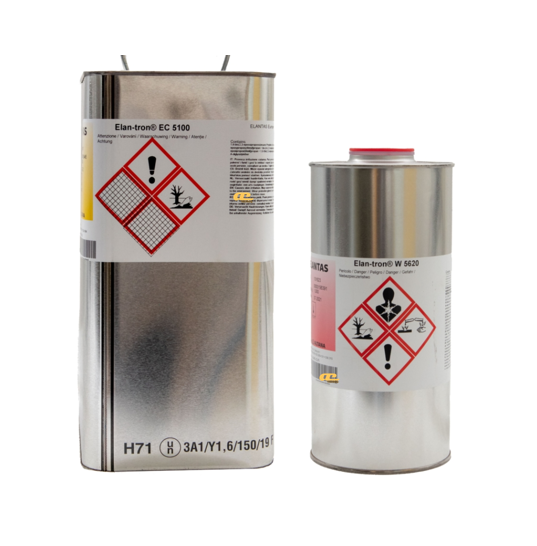

Item Name: Elan-tron® EC 5100/W 5620
Manufacturer: ELANTAS Camattini S.p.A.
Technologies: Unfilled two-component epoxy, low viscosity, solvent-free, F-class thermal rating (155°C), RoHS compliant
Color: Resin – Neutral, Hardener – Pale yellow
Cure Type: Room temperature curing with optional moderate-temperature post-cure
Package Size: Contact Techniq VN for details
Shelf Life: Resin – 24 months, Hardener – 24 months
Elan-tron® EC 5100/W 5620 is a two-component, unfilled epoxy potting compound designed for castings, impregnation of wound components, and fast structural repairs. The system is low viscosity, solvent-free, and resistant to crystallization. It cures at room or moderate temperatures, with post-curing enhancing electrical and mechanical properties. Thermal class F (155°C, UL 1446) and RoHS compliant.
Impregnation of stators, winding heads, rotors, wound magnetic cores, transformers, and capacitors.
Fast structural repair of electrical components.
Potting and sealing of electrical and electromechanical devices.
| Property | Resin / Hardener | Cured / Mixed |
|---|---|---|
| Mixing ratio (weight) | 100:30 | – |
| Mixing ratio (volume) | 100:40 | – |
| Resin color | Neutral | – |
| Hardener color | Pale yellow | – |
| Resin viscosity (25 °C) | 800–1,200 mPas | – |
| Hardener viscosity (25 °C) | 60–120 mPas | – |
| Resin density (25 °C) | 1.10–1.14 g/ml | – |
| Hardener density (25 °C) | 0.97–1.03 g/ml | – |
| Initial mixture viscosity | 25 °C: 300–600 mPas 40 °C: 200–300 mPas |
– |
| Pot life (viscosity doubling) | 40 °C: 12–20 min | – |
| Gelation time | 25 °C (15 ml;6 mm): 2–3 h 80 °C (h=70 mm, d=20 mm): 3–5 min |
– |
| Demoulding time | 25 °C: 6–7 h | – |
| Cured density | – | 1.06–1.10 g/ml |
| Hardness | – | 75–80 Shore D |
| Glass transition (Tg) | – | 55–65 °C |
| Linear thermal expansion | Tg-10 °C: 65–75 ×10⁻⁶/°C Tg+10 °C: 120–140 ×10⁻⁶/°C |
– |
| Thermal conductivity | – | 0.17–0.22 W/(m·K) |
| Dielectric constant | – | 3.2–3.6 |
| Loss factor | – | 5–15 ×10⁻³ |
| Volume resistivity | – | 3×10¹⁵ – 5×10¹⁵ Ω·cm |
| Dielectric strength | 25 °C (2 mm) | 21–23 kV/mm |
| Tracking index | – | >600 CTI |
| Flexural strength | – | 105–115 MPa |
| Flexural strain | – | 4.5–6.5 % |
| Flexural modulus | – | 3,000–3,600 MPa |
| Tensile strength | – | 65–75 MPa |
| Tensile elongation | – | 4–6 % |
