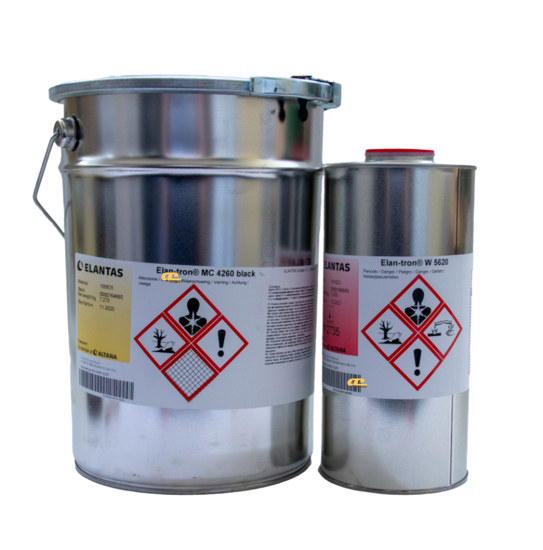

Item Name: Elan-tron® MC 4260/W 4260
Manufacturer: ELANTAS Italia S.r.l.
Technologies: Filled two-component epoxy system, UL 94 HB rated, RoHS compliant, Class H (180°C)
Color: Resin – Black, Hardener – Neutral
Cure Type: Room temperature or moderate temperature curing with optional post-cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Resin 12 months, Hardener 24 months
Elan-tron® MC 4260/W 4260 is a two-component, filled epoxy potting compound comprising Epoxylite® EIP 4260 resin and hardener. It is self-extinguishing, offers excellent thermal cycling performance, and belongs to thermal class H (180 °C). The system has low viscosity, high impregnation capability, low exothermic peak, and good electrical and mechanical properties. It is UL 94 HB listed (File E116643) and RoHS/RoHS 2 compliant. It cures at room or moderate temperatures and can be applied manually, automatically, or under vacuum, with pre-heating recommended for complex components.
Encapsulation of conventional electrical motors and linear motors.
Impregnation and potting of transformers.
Applications requiring large bulk castings and reliable thermal cycling performance.
The system provides a long pot life and stable processing with predictable gelation times. Mixed epoxy exhibits low to moderate initial viscosity, facilitating high impregnation of complex parts. After curing, the material demonstrates high hardness, moderate glass transition temperature, good thermal conductivity, and low dielectric loss. Electrical insulation, mechanical strength, and dimensional stability are strong, making it suitable for high-temperature electrical and electromechanical applications. Thermal shock resistance and UL-rated flammability ensure safe performance in demanding operating conditions.
| Property | Still Not Mixed (Resin/Hardener) | After Mixed / Cured |
|---|---|---|
| Mixing ratio (weight) | 100:10 | – |
| Mixing ratio (volume) | 100:18 | – |
| Resin viscosity (25 °C) | 15,000–25,000 mPas | 3,000–4,000 mPas (25 °C); 400–700 mPas (50 °C) |
| Hardener viscosity (25 °C) | 5–15 mPas | – |
| Resin density (25 °C) | 1.80–1.85 g/ml | – |
| Hardener density (25 °C) | 0.94–0.98 g/ml | – |
| Gel time | 15–25 min (80 °C, 100 ml) | 5–6 h (25 °C); 50–60 min (60 °C) |
| Pot life (viscosity doubling) | – | 15–25 min (50 °C); 10–15 min (80 °C) |
| Suggested curing cycles | – | 48 h at 25 °C or 6 h at 80 °C |
| Cured density | – | 1.73–1.77 g/ml |
| Hardness | – | 85–90 Shore D |
| Glass transition temperature | – | 55–65 °C |
| Thermal conductivity | – | 0.60–0.70 W/(m·K) |
| Max recommended operating temperature | – | 180 °C |
| Dielectric constant | – | 3.5–4.5 |
| Dielectric loss factor | – | 10–30×10⁻³ |
| Volume resistivity | – | 8×10¹⁴–3×10¹⁵ Ω·cm |
| Dielectric strength | – | 19–21 kV/mm |
| Tracking index | – | >600 CTI |
| Flexural strength | – | 75–85 MPa |
| Strain at break | – | 1.5–2.5 % |
| Flexural modulus | – | 4,500–5,500 MPa |
| Tensile strength | – | 40–50 MPa |
| Elongation at break | – | 1.5–3.0 % |
