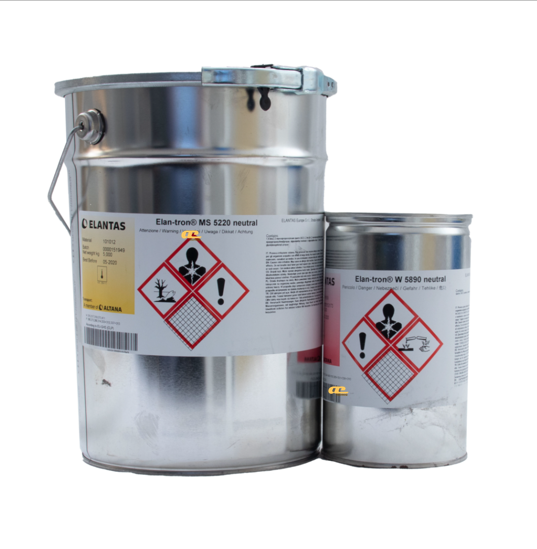

Item Name: Elan-tron® MS 5220/W 5890
Manufacturer: ELANTAS Italia S.r.l.
Technologies: Abrasive-filled, thixotropic, solvent-free epoxy paste, low shrinkage, resistant to acids, bases, mineral oils, RoHS compliant
Color: Resin – Beige, Hardener – Beige
Cure Type: Room temperature or heat curing, optional post-cure for optimized properties
Package Size: Contact Techniq VN for details
Shelf Life: Resin – 12 months, Hardener – 12 months
Elan-tron® MS 5220/W 5890 is a two-component, thixotropic epoxy paste filled with abrasive material. It is solvent-free, exhibits low shrinkage, and provides high resistance to diluted acids, bases, and mineral oils. The system adheres well to a variety of materials and complies with RoHS (European Directive 2002/95/EC). It can cure at room temperature or with heat, offering optimal electrical and mechanical properties after post-curing. Components should be stored in sealed containers in a cool, dry place, with a shelf life of up to one year.
Protection of windings and coils in electrical components
Sealing of temperature-resistant tools
Suitable for manual application or mechanical mixing with automated dispensing systems
Curing at room temperature or under heat
Before Mixing
| Property | Value | Unit |
|---|---|---|
| Resin viscosity (25°C) | 220–320 (10 sec⁻¹) | Pa·s |
| Hardener viscosity (25°C) | 12–18 (30 sec⁻¹) | Pa·s |
| Resin density (25°C) | 1.72–1.82 | g/ml |
| Hardener density (25°C) | 1.40–1.50 | g/ml |
| Mix ratio (weight) | 100:20 | Resin:Hardener |
| Mix ratio (volume) | 100:25 | ml |
| Mix color | Beige | – |
| Working time (25°C, 1000 g) | >60 | min |
| Initial mixture viscosity (25°C) | 180,000–240,000 | mPas |
| Gel time (25°C, 15 ml/6 mm) | 6–8 | h |
| Gel time (100°C, 15 ml/6 mm) | 50–70 | min |
| Demolding time (25°C, 15 ml/6 mm) | 24–48 | h |
| Demolding time (100°C, 15 ml/6 mm) | 1–2 | h |
After Curing (24 h TA + 15 h at 60°C)
| Property | Value | Unit |
|---|---|---|
| Density (25°C) | 1.72–1.76 | g/ml |
| Hardness (Shore D/15) | 80–84 | – |
| Glass transition (Tg) | 55–65 | °C |
| Water absorption (24 h, RT) | 0.05–0.10 | % |
| Linear thermal expansion (Tg+10°C) | 40–50 & 105–125 | 10^-6/°C |
| Max. operating temperature | 155 | °C |
| Dielectric constant (25°C) | 3.0–3.5 | – |
| Dielectric loss (25°C) | 0.038–0.048 | – |
| Volume resistivity (25°C) | 7×10^14–9×10^14 | Ω·cm |
| Dielectric strength (25°C) | 20–22 | kV/mm |
| Flexural strength | 65–75 | MN/m² |
| Max. bending | 0.7–1.2 | % |
| Elastic modulus | 8,500–9,500 | MN/m² |
| Tensile strength | 24–30 | MN/m² |
| Elongation at break | 0.5–0.9 | % |
| Compressive strength | 130–145 | MN/m² |
