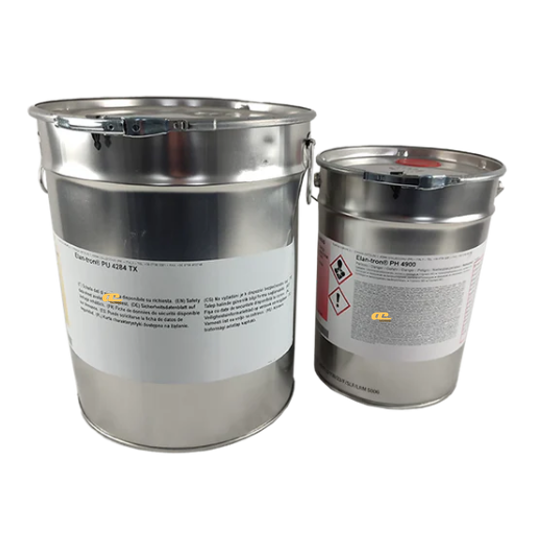

• Item Name: Elan-tron® PU 4284 TX / PH 4900
• Manufacturer: ELANTAS Beck GmbH
• Technologies: Two-component, soft-elastic polyurethane, thixotropic, filled system
• Color: Resin – Black; Hardener – Brown transparent
• Cure Type: Room temperature (24–36 h) or accelerated at 60°C (2–3 h)
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 6 months
Elan-tron® PU 4284 TX is a thixotropic, filled polyurethane resin that, when combined with the hardener Elan-tron® PH 4900 (mix ratio 100:14 by weight), cures to a soft-elastic potting compound. Its structural viscosity allows thick-layer application, while the cured material provides vibration damping, good electrical insulation, and stable mechanical behavior. The system is suitable for manual or automated processing and can be cured at room temperature or accelerated with heat.
Potting and coating of electrical components exposed to vibration.
Ideal for medium-power network transformers.
Thick-layer encapsulation where elasticity and thermal management are required.
| Property | Conditions | Resin (PU 4284 TX) | Hardener (PH 4900) | After Mixed & Cured |
|---|---|---|---|---|
| Colour | — | Black | Brown-transparent | Black, soft-elastic |
| Viscosity | 25°C | 16,000 ± 2500 mPa·s | 110 ± 30 mPa·s | Mix: 26,500 mPa·s |
| Density | 20°C | 1.78 ± 0.05 g/cm³ | 1.23 ± 0.05 g/cm³ | 1.76 ± 0.02 g/cm³ |
| Shelf Life | 23°C | 6 months | 6 months | — |
| Mixing Ratio | — | — | — | 100:14 (w/w) |
| Pot Life | 23°C, 15 ml | — | — | ~90 min |
| Curing | — | — | — | 24–36 h RT or 2–3 h at 60°C; optional post-cure 80°C / 12–16 h |
| Glass Transition Temp (Tg) | IEC 61006 | — | — | ~20°C |
| Thermal Conductivity | DIN 52613 | — | — | 0.58 W/m·K |
| Coefficient of Thermal Expansion | Above Tg | — | — | 200 × 10⁻⁶ K⁻¹ |
| Hardness | ISO 868 | — | — | 60 ± 7 Shore A |
| Dielectric Strength | IEC 60250 | — | — | 24 kV/mm (dry, 23°C) |
| Volume Resistivity | IEC 60455 | — | — | 10¹³ Ω·cm (dry, 23°C) |
| Dielectric Constant | IEC 60250 | — | — | 5.1 (23°C, 50 Hz) |
| Water Absorption | ISO 62 | — | — | 0.4% (24h, RT) |
| Comparative Tracking Index (CTI) | IEC 60112 | — | — | 600 |
