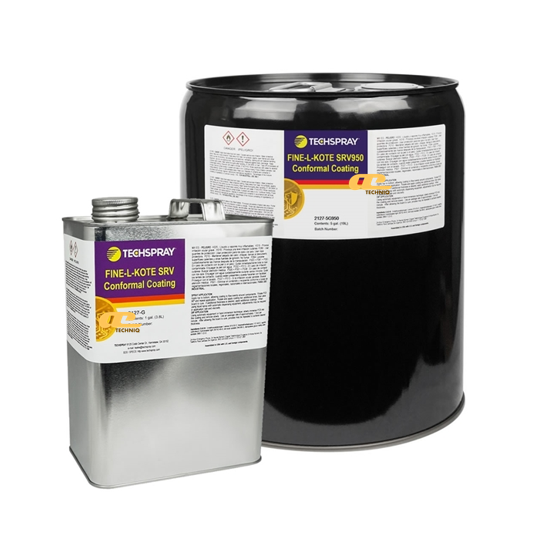

• Item Name: Fine-L-Kote™ SRV Silicone Coating
• Manufacturer: Techspray® / ITW Contamination Control BV
• Technologies: One-part, moisture/humidity-cured silicone conformal coating with low VOC content
• Color: Translucent (clear)
• Cure Type: Ambient room temperature; optional mild heat acceleration
• Package Size: 1 pint / 0.47L, 1 gallon / 3.8L, 5 gallon / 18.9L, 54 gallon / 204L (Standard & High Viscosity options)
• Shelf Life: 12 months from production date
Fine-L-Kote™ SRV is a one-part, clear silicone conformal coating that provides moisture- and abrasion-resistant protection after curing. It cures at ambient conditions using a moisture-based mechanism, forming a resilient, elastoplastic surface with excellent flexibility. This coating offers low VOC content, UV inspection capability, and UL 94 V-0 flammability rating. It protects electronic components against moisture, salt, fungus, corrosive vapors, and thermal/mechanical stresses while enhancing insulation, soil repellency, and component lifespan. Heat can optionally accelerate curing without the need for ovens.
Data communications equipment
Instrumentation
Automotive manufacturing
Marine manufacturing
Process control systems
Before Curing / Ready-to-Use
| Property | Standard Viscosity | High Viscosity (950) |
|---|---|---|
| Physical State | One-part liquid | One-part liquid |
| Color | Translucent (clear) | Translucent (clear) |
| Viscosity (cP) | 82 ± 20 | 950 ± 100 |
| Specific Gravity @68°F | 0.85 | 0.95 |
| Solids / NVC (%) | 45 ± 5 | 85 ± 5 |
| VOC (CARB) | 25.2% | 4.7% |
| VOC (SCAQMD) | 415 g/L | 152 g/L |
| VOC (Federal) | 13.2% | 3.8% |
| Flash Point | 10°F (-12.2°C) | 10°F (-12.2°C) |
| UV Indicator | Yes | Yes |
| RoHS Compliant | Yes | Yes |
| Shelf Life | 12 months | 12 months |
| Coverage (1 mil dry film) | 723 ft²/gal | 1285 ft²/gal |
After Curing / Fully Cured Film
| Property | Value |
|---|---|
| Tack-Free Time (Ambient) | 30 min |
| Full Cure (Ambient) | 24 hrs @ 77°F / 25°C, 30–60% RH |
| Operating Temp Range | -76°F to 392°F / -60°C to 200°C |
| Hardness (Shore A) | 90 |
| Hardness (Shore D) | 88 |
| Dielectric Strength | >720 V/mil (>28 kV/mm) |
| Volume Resistivity | >1.4 × 10¹² ohm-cm |
| Dielectric Constant | 3.75 (100 Hz), 3.85 (100 kHz) |
| Dissipation Factor | 1.017 (100 Hz), 0.719 (100 kHz) |
| Moisture Resistance | Excellent |
| Soil Resistance | Excellent |
| Flexibility | Excellent |
| Abrasion Resistance | Fair |
| Solvent Resistance | Good |
| Adhesion | Excellent |
| Removability / Repairability | Excellent |
