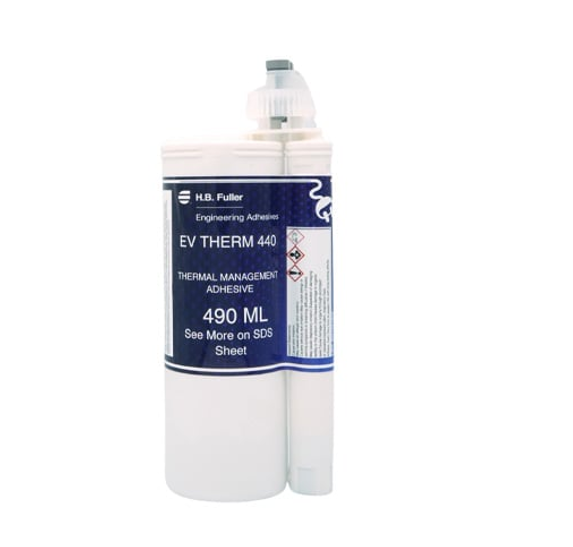

Item Name: EV Therm 440GB
Manufacturer: H.B. Fuller
Technologies: Modified Acrylic
Color: Off White or Yellow
Cure Type: Room temperature
Package Size: 50 ml, 490 ml, pail, drum (special packaging available upon request)
Shelf Life: 90 days
EV Therm 440GB is a modified, highly engineered structural acrylic adhesive designed for excellent thermal conductivity and superior mechanical performance across a wide range of substrates and temperatures. It is a two-component, room-temperature curing adhesive with off-white or yellow viscous liquid form. The product offers UL94 V0 flame retardancy, high impact resistance, and is filled with 0.25 mm spacer glass beads for optimal bondline thickness. The adhesive is reactive, does not require surface preparation, and is suitable for manual or pneumatic dispensing.
Recommended substrates include:
Metals: Aluminum, Steel, Stainless, E-Coated Metal
Thermosets: Fiberglass, Phenolic, Gel Coat, Epoxy, RIM Urethane, Polyurethane, Liquid Molding Resin
Thermoplastics: Acrylic, ABS, Polycarbonate, Nylon/PA*, PPO*, Vinyl*, PVC, Styrene, Peek, PBT Blends*, PET Blends*
(*Surface treatment may be needed for some plastics)
| Property | Resin / Unmixed | Activator / Unmixed | Mixed / Cured |
|---|---|---|---|
| Viscosity | 100,000 – 150,000 cPs @25°C | 40,000 – 80,000 cPs @25°C | – |
| Mix Ratio | – | – | 10:1 (weight), 14:1 (volume) |
| Density | – | – | 1.55 g/cc |
| Flash Point | – | – | >200°F |
| Open Time | – | – | 18 – 23 minutes |
| Fixture Time | – | – | 30 – 50 minutes |
| Cure | – | – | Room Temp, 24 hr |
| Gap Fill | – | – | -67°F to 212°F |
| Tensile / Overlap Shear Strength | – | – | Carbon Steel: 13.8 MPa (2,000 psi), Nickel-coated Low-carbon Steel: 19 MPa (2,755 psi) |
| Hardness | – | – | 55 Shore D (ASTM D2240) |
| Elongation at Break | – | – | 4 – 6% |
| Thermal Conductivity | – | – | 1.0 W/(m·K) |
| Dielectric Strength | – | – | 19.0 ± 0.9 kV/mm |
| Flame Retardancy | – | – | UL94 V0 |
| Service Temperature Range | – | – | -67°F to 212°F |
