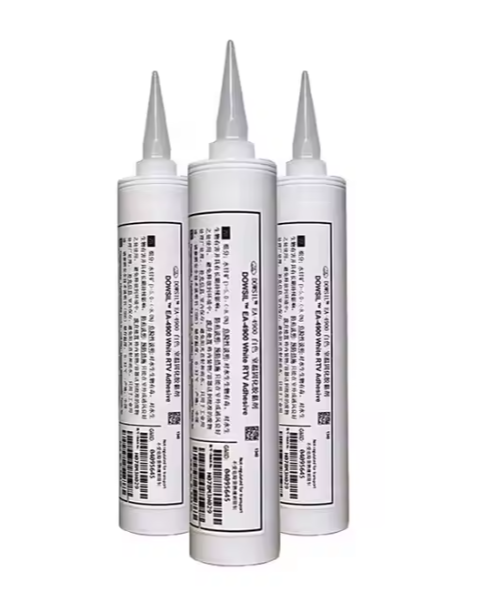

Brand Name: DOWSIL™ EA-4900 White RTV Adhesive
Package Size: Available in 330 mL cartridges
Shelf Life: Approximately 12 months from the date of manufacture.
1. Product Overview
DOWSIL™ EA-4900 White RTV Adhesive is a one-part, white, non-flowing, room-temperature vulcanizing (RTV) adhesive. It features a fast tack-free time and does not require mixing. The adhesive is composed of a polydimethylsiloxane with an alkoxy cure system and has a UL 94 V-0 flammability rating.
2. Applications
This adhesive is suitable for sealing equipment and modules on circuit boards. It provides durable adhesion to various substrates, including metals, ceramics, and glass, making it ideal for electronic assembly applications.
DOWSIL™ EA-4900 White RTV Adhesive
Typical Properties
| Property | Unit | Value |
|---|---|---|
| One or Two-part | – | One |
| Color | – | White |
| Extrusion Rate | g/min | 2,131 |
| Specific Gravity (Uncured) | – | 1.70 |
| Tack-Free Time at 25°C | minutes | 5 |
| Tensile Strength | psi (MPa) | 580 (4.0) |
| Elongation | % | 31 |
| Durometer | Shore A | 80 |
| Unprimed Adhesion – Lap Shear to Aluminum | psi (MPa) | 231 (1.6) |
| Unprimed Adhesion – Lap Shear to Glass | psi (MPa) | 60 (0.4) |
| Dielectric Strength | volts/mil (kV/mm) | 625 (25) |
| Volume Resistivity | ohm·cm | 1.0E+16 |
| Dielectric Constant at 100 kHz | – | 3.71 |
| Dissipation Factor at 100 kHz | – | 0.0118 |
| Thermal Conductivity | W/m·K | 0.7 |
| Content of Low Molecular Siloxane (D4-D10) | ppm | <300 |
| UL Flammability Classification | – | 94 V-0 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
