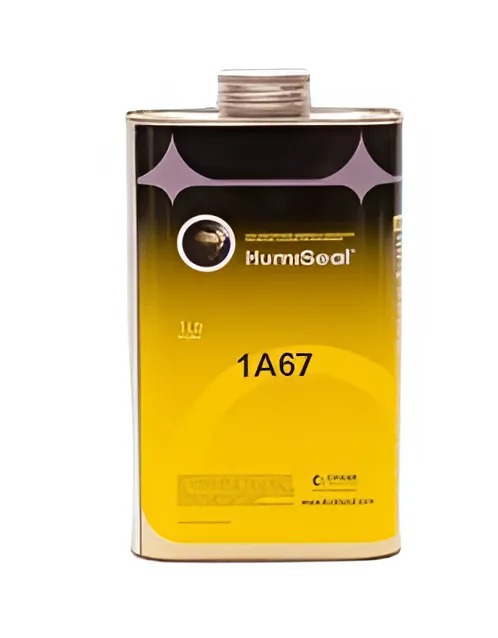

• Item Name: HumiSeal® 1A67
• Manufacturer: HumiSeal
• Technologies: Single-component polyester urethane conformal coating
• Color: Not specified
• Cure Type: 20 hours at 80°C, 7 days for optimum properties
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
HumiSeal® 1A67 is a single-component polyester urethane conformal coating designed for the protection of printed circuit boards (PCBs). It is toluene-free, offers excellent flexibility, and provides long-term electrical insulation. The coating has low gas permeability and meets RoHS Directive 2002/95/EC compliance.
| Property | Value |
|---|---|
| Density (ASTM D1475) | 0.92 g/cm³ |
| Solids Content (Fed-Std-141, Meth. 4044) | 30% |
| Viscosity (Fed-Std-141, Meth. 4287) | 750 ± 350 cP |
| VOC | 644 g/L |
| Drying Time to Handle (Fed-Std-141, Meth. 4061) | 25 minutes |
| Recommended Coating Thickness | 25 – 75 microns |
| Curing Conditions | 20 hrs @ 80°C |
| Time to Reach Optimum Properties | 7 days |
| Glass Transition Temperature (Tg) – DSC | 55°C |
| Dielectric Withstand Voltage (MIL-I-46058C) | >1500V |
| Insulation Resistance (MIL-I-46058C) | 6.93 x 10¹² Ω (6.93TΩ) |
| Moisture Insulation Resistance (MIL-I-46058C) | 6.9 x 10¹⁰ Ω (69GΩ) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
