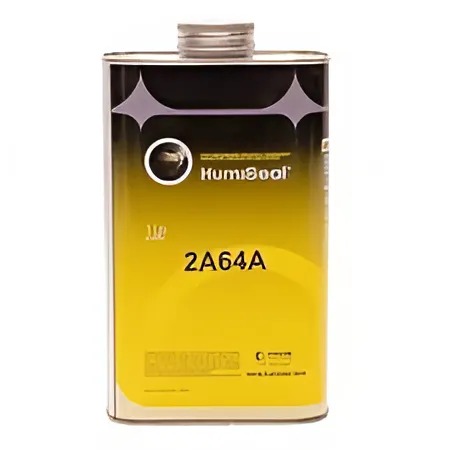

HumiSeal® 2A64 is a two-component polyurethane conformal coating designed for general printed circuit board (PCB) applications. It is characterized by high solids content, low viscosity for easy application, and UV fluorescence for inspection. The coating meets MIL-I-46058C, IPC-CC-830, and RoHS Directive 2011/65/EC compliance standards.
| Property | Value |
|---|---|
| Mixing Ratio (A:B) | 1:1 by volume |
| Pot Life at Room Temperature | 8 hours |
| Shelf Life at Room Temperature | 12 months |
| Recommended Thinner | HumiSeal® Thinner 64 |
| Recommended Stripper | HumiSeal® Stripper 1072 |
| Property | Value |
|---|---|
| Density | 1.07 ± 0.03 g/cm³ |
| Solids Content | 55 ± 5% |
| Viscosity | 130 ± 50 cP |
| VOC | 501 g/L |
| Recommended Coating Thickness | 25 – 75 µm |
| Drying Time to Handle | 15 minutes |
| Curing Condition | 3 hrs @ 76°C |
| Property | Value |
|---|---|
| Thermal Shock Resistance | -65°C to 125°C |
| Coefficient of Thermal Expansion | 82 ppm/°C (Below Tg), 255 ppm/°C (Above Tg) |
| Glass Transition Temperature (Tg) | 12°C |
| Modulus (DMA) | 4101 MPa @ -40ºC, 2777 MPa @ 25ºC, 2 MPa @ 80ºC |
| Flammability | Self-Extinguishing |
| Dielectric Withstand Voltage | >1500V |
| Dielectric Breakdown Voltage | 3500V |
| Dielectric Constant (1MHz, 25°C) | 3.5 |
| Dissipation Factor (1MHz, 25°C) | 0.024 |
| Insulation Resistance | 4.5 x 10¹⁴ Ω |
| Moisture Insulation Resistance | 4.8 x 10¹⁰ Ω |
| Fungus Resistance | Passes |
