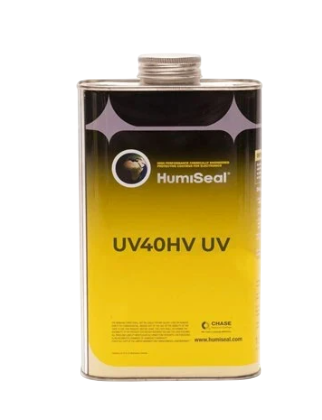

HumiSeal® UV40HV is a high-solids, single-component, UV-curable acrylated polyurethane conformal coating. It offers excellent chemical resistance, surface hardness, flexibility, and moisture resistance. The coating is tack-free after UV exposure and features a secondary moisture cure for unexposed areas. It fluoresces under UV light for inspection and complies with RoHS Directive 2011/65/EU.
| Property | Value |
|---|---|
| Density | 1.05 – 1.15 g/cm³ |
| Minimum Solids Content | 95% |
| Viscosity (Fed-Std-141, Method 4287) | 3,700 ± 1,300 cP |
| Shelf Life (Room Temp.) | 12 months |
| Recommended Stripper | HumiSeal® Stripper 1100 (not available in EU) |
| Thermal Shock (50 cycles, -65°C to 125°C) | Pass |
| Glass Transition Temperature (Tg) | 45°C |
| Coefficient of Thermal Expansion (TMA) | 85 ppm/°C (below Tg), 197 ppm/°C (above Tg) |
| Dielectric Withstand Voltage | >1500V |
| Dielectric Constant (1MHz, 25°C, ASTM D150-98) | 2.5 |
| Dissipation Factor (1MHz, 25°C, ASTM D150-98) | 0.01 |
| Insulation Resistance | 8.0 × 10¹⁴ Ω (800TΩ) |
| Moisture Insulation Resistance | 4.7 × 10¹⁰ Ω (47GΩ) |
| Fungus Resistance (ASTM G21) | Pass |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
Techniq Vietnam provides end-to-end materials and process solutions, integrating world-class technologies in adhesives, soldering, and thermal management.
Through partnerships with leading global brands, we deliver high-value materials, expert consulting, and optimized supply chains ensuring timely delivery, efficiency, and sustainable growth for our clients.
At Techniq, our mission is to connect cutting-edge materials, processes, and equipment with customer needs, enabling efficiency, reliability, and long-term value creation.
