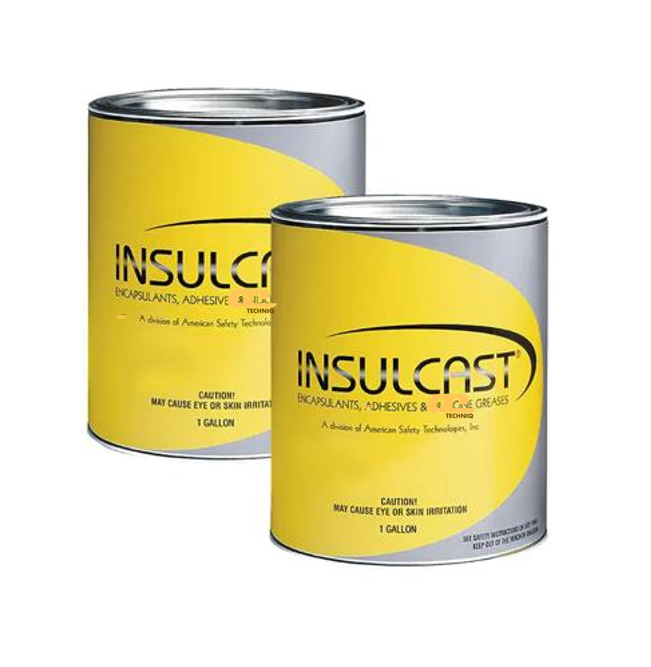

• Item Name: INSULCAST 140 FR
• Manufacturer: ITW Performance Polymers
• Technologies: Two-component epoxy with INSULCURE 11B, heat-castable, Class F operating properties
• Color: INSULCAST 140 FR – Black, INSULCURE 11B – Amber
• Cure Type: Heat cure with post-cure option
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
INSULCAST 140 FR is a high–thermal-conductivity epoxy casting compound designed for demanding heat dissipation applications. When used with INSULCURE 11B hardener, it achieves Class F thermal performance and meets UL94V-1 flammability requirements. Its heavily filled formulation offers superior mechanical strength, excellent electrical insulation, and stability across a wide service temperature range. Ideal for castable heat sink applications, the system provides durability and robust thermal management for electronic assemblies.
Castable heat sinks for electronic components
High thermal conductivity encapsulation
Electrical insulation requiring stable performance up to 155°C
Potting of power devices, transformers, and coils
Applications requiring UL94V-1 flame resistance and Class F rating
| Property | INSULCAST 140 FR | INSULCURE 11B | Mixed |
|---|---|---|---|
| Color | Black | Amber | — |
| Viscosity (cPs) | 220,000 | 700 | 50,000 @ 60°C |
| Specific Gravity | 2.60 | 0.95 | — |
| Mix Ratio (by wt.) | — | — | 100 : 3–4 |
| Pot Life @ 25°C | — | — | 2.5 hrs |
| Shelf Life @ 25°C | 12 months | 12 months | — |
| Property | Value |
|---|---|
| Hardness (Shore D) | 90–95 |
| Tensile Strength | 8,500 psi (58.6 MPa) |
| Tensile Elongation | <1% |
| Compressive Strength | 18,000 psi (124.1 MPa) |
| Flexural Strength | 13,500 psi (93.1 MPa) |
| Thermal Conductivity | 2.3 W/mK |
| CTE | 26×10⁻⁶ m/m·K |
| Heat Distortion Point | 155°C |
| Service Temperature | –55 to 155°C |
| Dielectric Strength | 420 V/mil |
| Dielectric Constant (1 kHz) | 6.3 |
| Volume Resistivity | 1×10¹⁵ ohm-cm |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
