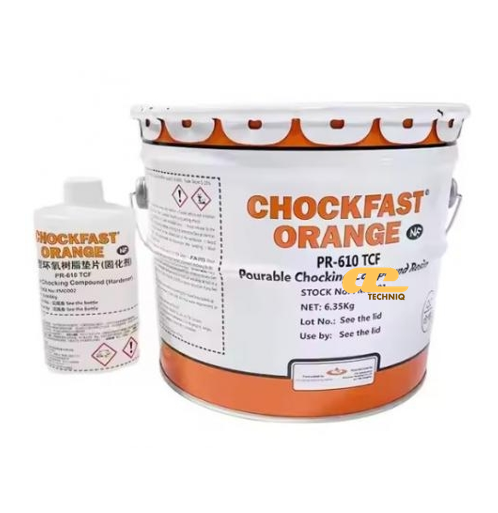

• Item Name: Chockfast® Orange (PR 610 TCF)
• Manufacturer: ITW Performance Polymers
• Technologies: Epoxy-based, inert filled, 100% solids casting compound
• Color: Orange
• Cure Type: Ambient temperature cure, two-component system
• Package Size: Small Unit: Resin 7.2 lbs (3.3 kg), Hardener 0.5 lbs (0.23 kg); Large Unit: Resin 14.4 lbs (6.5 kg), Hardener 0.99 lbs (0.45 kg)
• Shelf Life: 2 years
Chockfast® Orange (PR 610 TCF) is a 100% solids, two-component, inert-filled casting compound formulated for chocking and grouting applications. It is engineered to withstand severe marine and industrial environments involving high levels of physical and thermal shock. The compound is non-shrinking, with very high impact and compressive strength, providing a reliable and cost-effective alternative to steel chocking while ensuring precise equipment alignment.
Certified/approved by ABS, Lloyd’s Register, Bureau Veritas, DNV, and other major agencies.
Designed for marine propulsion machinery and other heavy equipment.
Used under:
Diesel and gas engines
Reduction gears
Generators
Compressors and pumps
Bearing blocks
Crane rails
Other critical machinery requiring permanent alignment
Typical pour depths:
Steel-to-steel: 12–100 mm (½–4 in.)
Concrete-to-steel: 12–50 mm (½–2 in.)
Advantages: flows into voids and irregularities, eliminating precision machining of foundation base plates.
| Property | Value | Standard |
|---|---|---|
| Compressive Strength | 19,000 psi (131 MPa) | ASTM D695 MOD |
| Compressive Modulus | 533,000 psi (3,675 MPa) | ASTM D695 MOD |
| Linear Shrinkage | 0.0002 in/in (0.02%) | ASTM D2566 |
| Coefficient of Thermal Expansion | 17.1 × 10⁻⁶ /°F (30.8 × 10⁻⁶ /°C) | ASTM D696 |
| Flexural Strength | 7,615 psi (52.5 MPa) | ASTM C580 |
| Flexural Modulus | 8.6 × 10⁵ psi (5,929 MPa) | ASTM C580 |
| Tensile Strength | 4,970 psi (34.3 MPa) | ASTM D638 |
| Shear Strength | 5,400 psi (37.2 MPa) | FED-STD-406 |
| Izod Impact Strength | 6 in.lbs/in (0.27 N·m/cm) | ASTM D256 |
| Shock Resistance | Pass | MIL-S-901C |
| Thermal Shock | Pass (0°C to 100°C) | ASTM D746 |
| Vibration | Meets | MIL-STD-167 |
| Fire Resistance | Self-extinguishing | ASTM D635 |
| Specific Gravity | 1.58 | — |
| Barcol Hardness | 40+ (min. 35) | ASTM D2583 |
