Item Numbers: KAPPA 1100H (horizontal injection, single workstation, integrated 7L melt tank, optional 3L)
Manufacturer: LPMS USA
Application: Low pressure molding for PCB and electronics encapsulation, waterproofing, strain relief, vibration protection
Dispensing Control: Integrated 7L melt tank, 2 temperature control zones, 7” touchscreen PLC interface
Size & Weight: 1120 × 950 × 2000 mm, 1036 lbs, max mold size 325 × 270 × 150 mm
Power & Certification: 220 VAC, 1 Phase, 50/60 Hz, 25A, air input 90–110 PSI, safety: light curtains, E-stop, interlocks
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)
1. Product Overview

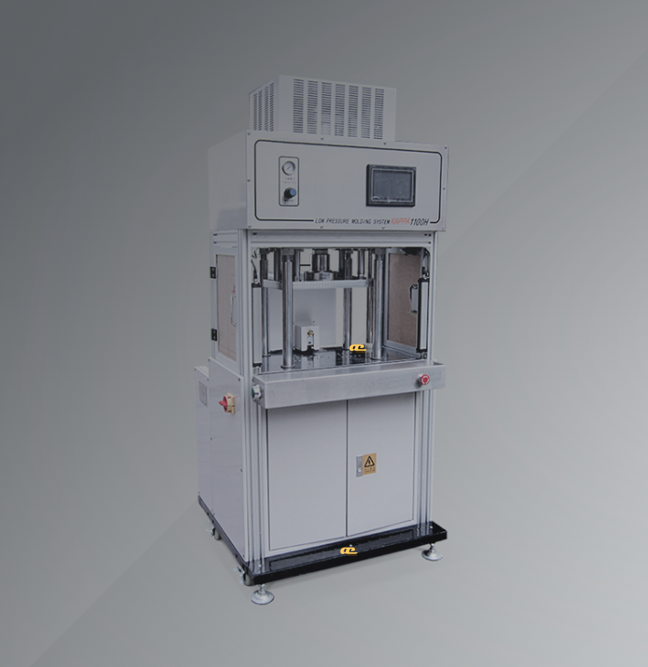

The KAPPA 1100H is a compact yet powerful low pressure molding machine engineered with a horizontal injection single workstation and an integrated melt tank. Its air-over-oil hydraulic cylinder delivers enhanced clamping force, enabling the processing of larger parts with precision. Featuring a 7-inch multilingual touchscreen interface, the system provides intuitive operation, while its integrated design minimizes equipment footprint. With robust operator safety mechanisms such as light curtains, emergency stop systems, and interlocked safety doors, the KAPPA 1100H combines efficiency, durability, and advanced protection for both operator and product.
2. Applications
The KAPPA 1100H is tailored for encapsulating printed circuit boards, connectors, sensors, switches, and small to medium-sized electronic assemblies. It provides exceptional waterproofing, vibration resistance, chemical protection, and strain relief. By streamlining production compared to traditional potting and conformal coating, it supports industries such as automotive electronics, consumer devices, medical equipment, and industrial systems, where compact design, reliable protection, and cost-effective manufacturing are critical.
3. Typical Properties – Specifications
| Parameter | Specification |
|---|---|
| Machine Dimensions | 1120 × 950 × 2000 mm · 44.09 × 37.40 × 78.74 in · 1036 lbs |
| Electricity | 220 VAC · 1 Phase · 50/60 Hz · 25 A |
| Air Input | 90 – 110 PSI |
| Air Volume | 4 CFM |
| Clamping Method | Air Over Oil cylinder |
| Clamping Force | 5 Tons |
| Clamping Stroke | 150 mm |
| Maximum Mold Size | 325 × 270 × 150 mm |
| Melt Tank Quantity / Volume | One integrated 7 L square (standard) · 3 L round (optional) |
| Temperature Control Zones | 2 |
| Safety Features | Light curtains · Emergency stop · Two-hand tie door interlocks · Lockout tagout |
