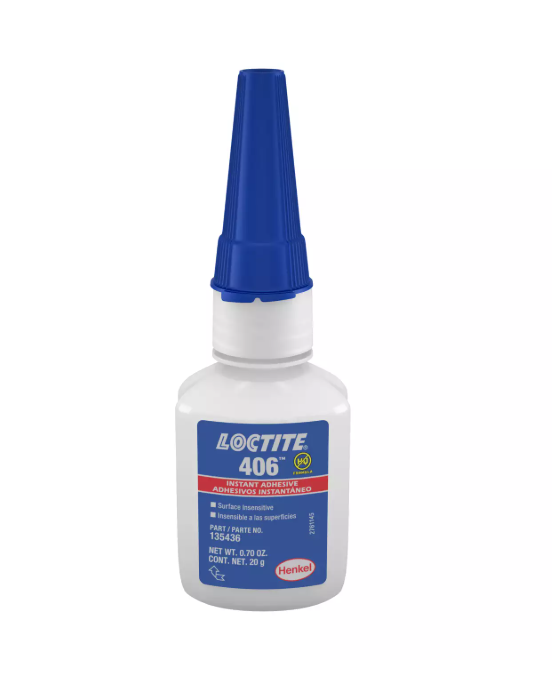

LOCTITE® 406™ is a low-viscosity, fast-curing cyanoacrylate adhesive designed for bonding plastics and rubber. It is a one-component adhesive that cures with atmospheric moisture and provides strong, reliable bonds for industrial applications.
Property | Value | Test Method |
---|---|---|
Appearance | Transparent, colorless to straw-colored liquid | Visual |
Viscosity | 12–22 mPa·s (Cone & Plate) / 15–25 mPa·s (Brookfield) | ISO 3104 |
Specific Gravity | 1.1 | ASTM D792 |
Flash Point | >80°C | ASTM D56 |
Cure System | Humidity cure | – |
Property | Value | Test Method |
---|---|---|
Fixture Time | Steel: 20–45 sec, Aluminum: <5 sec, ABS/PVC: <5 sec, Polycarbonate: 10–20 sec | ISO 4587 |
Lap Shear Strength | Steel: 15.5 N/mm² (2250 psi), Aluminum: 12 N/mm² (1740 psi), ABS: 8.8 N/mm² (1280 psi), Polycarbonate: 9.1 N/mm² (1320 psi) | ISO 4587 |
Block Shear Strength | ABS: 23.7 N/mm² (3440 psi), Phenolic: 13.8 N/mm² (2000 psi) | ISO 13445 |
Operating Temperature | -40°C to 80°C (Short-term: 100°C) | – |
Moisture Resistance | 98% RH at 40°C | – |
Chemical Resistance | Resists motor oil, gasoline, ethanol, and isopropanol |
