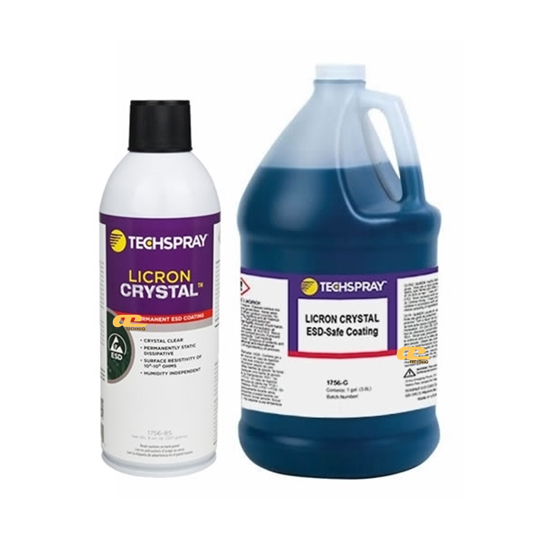

• Item Name: Licron Crystal ESD-Safe Coating
• Manufacturer: Techspray® / ITW Contamination Control BV
• Technologies: Permanent static-dissipative polymer coating
• Color: Colorless, crystal clear
• Cure Type: Air dry at room temperature; optional heat acceleration 120°–150°F (49°–66°C)
• Package Size: 8 oz. aerosol; 1 gallon liquid
• Shelf Life: 5 years unopened
Licron Crystal™ is an innovative, permanent static-dissipative coating designed for superior adhesion to metals, glass, plastics, paints, and most other surfaces. It functions reliably across 0–100% humidity and maintains a surface resistivity of 10⁷–10⁹ ohms. Unlike traditional translucent static-dissipative coatings, Licron Crystal is crystal clear. The coating is durable, chip-resistant, and can be applied via standard spray guns or paint systems. Grounding is possible through conductive adhesives, making it suitable for ESD-sensitive environments. Operating temperature reaches up to 302°F (155°C), and the product is non-ozone-depleting.
Electronic assembly workstations, bins, carts, and trays
Electronic assembly enclosures, including Plexi-Glass
Packaging for sensitive electronic components
Production conveyors and bumpers
Static protection for electronic devices
Before Mixing / Ready-to-Use
| Property | Value |
|---|---|
| Physical State | Liquid |
| Color | Colorless |
| Odor | Alcohol-like |
| pH | 8.5 |
| Flash Point | 53.2°F (11.7°C) |
| Auto-Ignition Temp | 852.8°F (456°C) |
| Boiling/Condensation Point | 181.4°F (83°C) |
| Melting/Freezing Point | -130°F (-90°C) |
| Relative Density | 0.79 |
| Vapor Pressure | 4.4 kPa (33 mmHg) |
| Vapor Density | 2.1 [Air=1] |
| Evaporation Rate | <1 (Water=1) |
| Shelf Life | 5 years (unopened) |
After Curing (Approx. 0.2 mil dry film)
| Property | Value / Compatibility |
|---|---|
| Surface Resistivity | 10⁷–10⁹ ohms |
| Adhesion (ASTM D3359) | ABS 4B, Nylon 6 5B, PC 5B, HDPE 5B, PMMA 5B, PP 4B, PS 0B (Not recommended), PTFE 0B (Not recommended) |
| Chemical Resistance | Maintains coating integrity with DI water, IPA, ethanol, Clorox (some slight haze with Dowanol DPM, THF, acetone) |
| Coverage | 1 gal @ 1 mil wet ~1600 sq. ft.; @2 mil ~800 sq. ft. |
| Operating Temp | Up to 302°F (155°C) |
