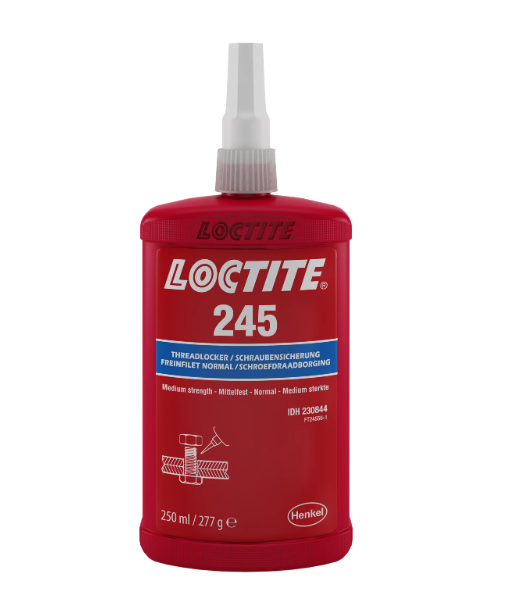

LOCTITE® 245 is a medium-strength, blue-colored anaerobic threadlocker designed for locking and sealing threaded fasteners. It prevents loosening due to vibrations and can be disassembled using standard hand tools. The adhesive fluoresces under UV light for quality control.
| Property | Value |
|---|---|
| Unmixed Properties | |
| Color | Blue |
| Base Chemistry | Dimethacrylate Ester |
| Specific Gravity @ 25°C | 1.1 |
| Viscosity (Brookfield, 25°C, @ 20 rpm) | 5,600 – 10,000 mPa·s |
| Fluorescence | Yes (Under UV light) |
| Mixed & Cured Properties | |
| Breakaway Torque (ISO 10964, M10 steel nuts & bolts) | 8 – 18 N·m (70 – 159 lb.in) |
| Prevail Torque (ISO 10964, M10 steel nuts & bolts) | 2 – 15 N·m (17 – 132 lb.in) |
| Compressive Shear Strength (ISO 10123, Steel pins/collars) | 6 – 14 N/mm² (870 – 2,030 psi) |
| Coefficient of Thermal Expansion | 100 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity | 0.1 W/(m·K) |
| Specific Heat | 0.3 kJ/(kg·K) |
| Environmental Resistance (Strength Retention after 1,000h Exposure) | |
| Motor Oil (125°C) | 90% |
| Water/Glycol (87°C) | 85% |
| Gasoline (22°C) | 90% |
| Brake Fluid (22°C) | 95% |
| Ethanol (22°C) | 95% |
| Acetone (22°C) | 75% |
| Temperature Resistance | Up to 150°C |
