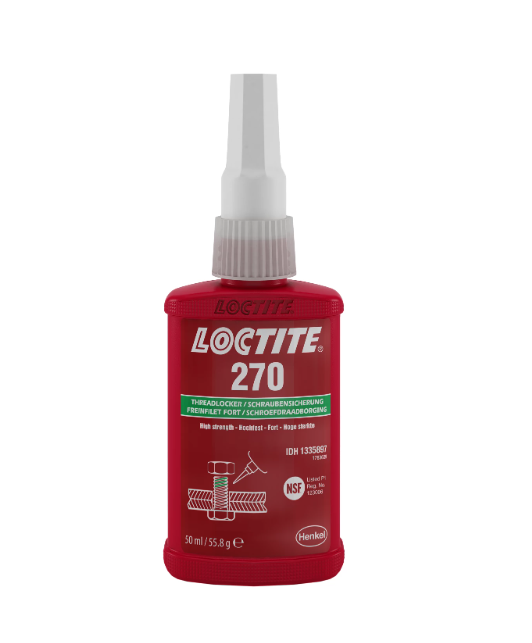

• Item Name: LOCTITE® 270™
• Manufacturer: Henkel
• Technologies: Acrylic, Dimethacrylate ester
• Color: Green
• Cure Type: Anaerobic, Secondary cure with activator
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 270™ is a high-strength, anaerobic threadlocking adhesive designed for the permanent locking and sealing of threaded fasteners. It prevents loosening and leakage caused by vibration and shock. The product cures in the absence of air between metal surfaces and is suitable for both active metals (e.g., brass, copper) and passive substrates (e.g., stainless steel, plated surfaces). It offers high-temperature performance and tolerance to minor oil contamination.
| Property | Value |
|---|---|
| Uncured Properties | |
| Appearance | Green liquid |
| Fluorescence | Positive under UV light |
| Viscosity (Brookfield RVT, 25°C) | 400 – 600 mPa·s (cP) |
| Specific Gravity @ 25°C | 1.1 |
| Curing Properties | |
| Cure Mechanism | Anaerobic |
| Secondary Cure | Activator |
| Handling Strength (Steel) | 10 minutes |
| Full Cure Time | 24 hours |
| Performance After Curing (24h at 22°C) | |
| Breakaway Torque (M10 Steel) | 33 N·m (290 lb·in) |
| Prevail Torque (M10 Steel) | 33 N·m (290 lb·in) |
| Compressive Shear Strength | ≥9.0 N/mm² (≥1305 psi) |
| Environmental Resistance | |
| Temperature Resistance | Up to 200°C |
| Chemical Resistance | Resistant to motor oil, gasoline, brake fluid, acetone, ethanol, and biodiesel |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
