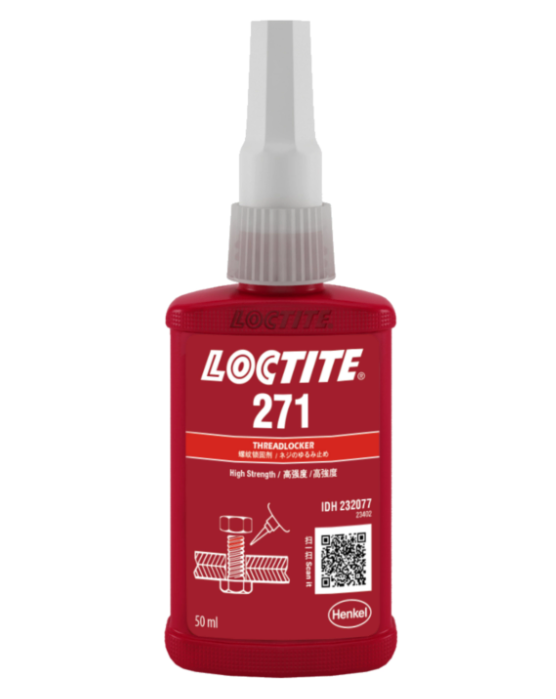

Permanent threadlocking
Locking/sealing of large bolts, studs, and threaded fasteners
Ideal for applications exposed to vibration
Certified for use in gasoline, oil, gas, and brake fluid environments
3. Typical Properties
Property | Value / Range |
---|---|
Appearance (Uncured) | Red |
Specific Gravity @ 25°C | 1.1 |
Viscosity (Brookfield RVT, 25°C) | 400–600 mPa·s (Spindle 1, 10 rpm) |
Flash Point | See SDS |
Cured Performance – After 24 Hours at 22°C
Property | Value/Range |
---|---|
Breakaway Torque (Steel, 3/8 x 16 bolts) | 16.9 to 34 N·m (150–300 lb.in.) |
Prevail Torque (Steel, 3/8 x 16 bolts) | 22.6 to 40 N·m (200–355 lb.in.) |
Breakaway Torque (Cadmium/Zinc bolts) | 4.5 to 14.1 N·m (40–125 lb.in.) |
Torque (M10 Steel Bolts) | 17 to 40 N·m (150–350 lb.in.) |
Environmental Resistance
Maintains strength up to 150°C
Resists automotive fluids, gasoline, ethanol, acetone, and brake fluid
Retains 85–100% of initial strength after 1,000 hours in various fluids
Excellent hot strength and heat aging resistance
