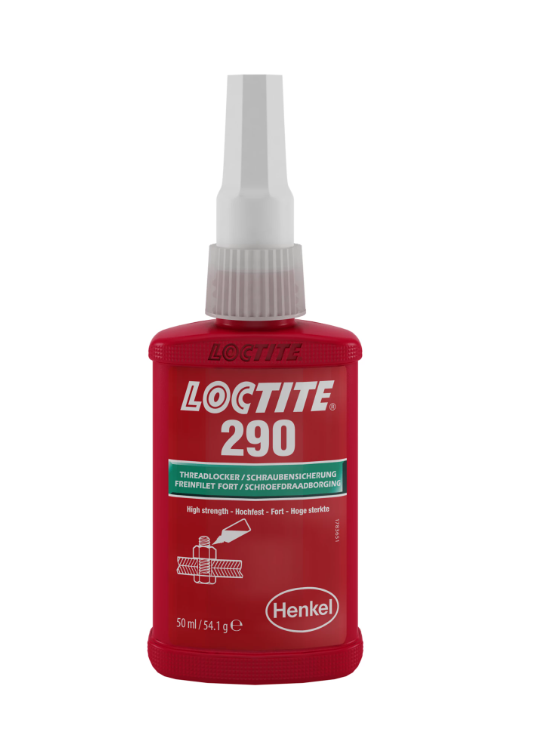

LOCTITE® 290™ is a low-viscosity, anaerobic threadlocker designed for locking and sealing threaded fasteners. Its capillary action allows it to wick between engaged threads without disassembly. It prevents loosening and leakage due to shock and vibration and can also be used to seal porosity in welds, castings, and powdered metal parts.
Key Features:
| Property | Value |
|---|---|
| Specific Gravity (@ 25°C) | 1.08 |
| Viscosity (Brookfield RVT) | 20 – 55 mPa·s (cP) |
| Property | Value |
|---|---|
| Coefficient of Thermal Expansion | 80 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity | 0.1 W/(m·K) |
| Specific Heat | 0.3 kJ/(kg·K) |
| Property | Value |
|---|---|
| Breakaway Torque (M10 Steel) | 10 N·m (90 lb·in) |
| Prevail Torque (M10 Steel) | 29 N·m (260 lb·in) |
| Breakloose Torque (M10 Steel) | 30 N·m (270 lb·in) |
| Compressive Shear Strength (Steel) | ≥5.4 N/mm² (≥780 psi) |
| Chemical/Solvent (Tested @ 23°C) | % Strength Retention (after 1000 h) |
|---|---|
| Motor Oil (125°C) | 50% |
| Leaded Petrol (22°C) | 90% |
| Brake Fluid (22°C) | 85% |
| Water/Glycol (50/50 @ 87°C) | 90% |
| Acetone (22°C) | 85% |
| Ethanol (22°C) | 80% |
| DEF (AdBlue® @ 22°C) | 135% |
