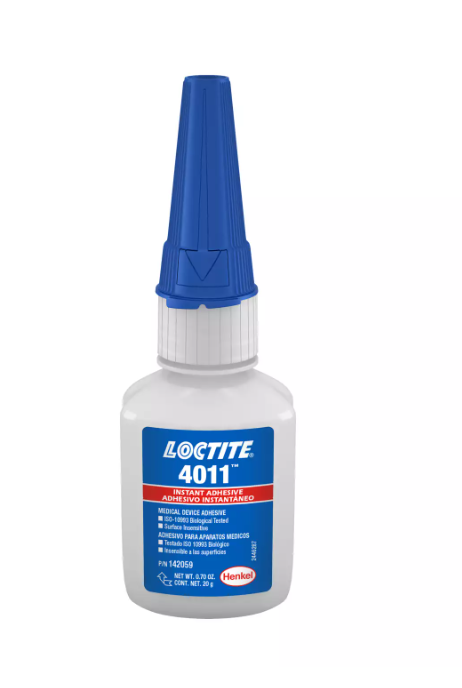

LOCTITE® 4011™ is a low-viscosity ethyl cyanoacrylate adhesive designed for bonding difficult-to-bond materials, providing uniform stress distribution and strong shear strength. It bonds metals, plastics, elastomers, and porous materials such as wood, paper, leather, and fabric. The product is suitable for medical device assembly and complies with ISO 10993 biocompatibility standards.
| Property | Value |
|---|---|
| Uncured Properties | |
| Specific Gravity @ 25°C | 1.06 |
| Viscosity (mPa·s) | 70-110 (Cone & Plate), 90-140 (Brookfield LVF) |
| Cure Method | Humidity |
| Cured Properties | |
| Glass Transition Temp. (°C) | 121 |
| Thermal Conductivity (W/m·K) | 0.4 |
| Dielectric Breakdown Strength (kV/mm) | 33 |
| Volume Resistivity (Ω·cm) | 277×10¹⁵ |
| Curing Performance | |
| Fixture Time (Steel) | 20-45 sec |
| Fixture Time (Aluminum) | 2-10 sec |
| Fixture Time (Wood) | <1-30 sec (varies by type) |
| Adhesive Strength | |
| Tensile Strength (Buna-N) | ≥6.9 N/mm² (10 sec cure), 8-15 N/mm² (72 hrs cure) |
| Lap Shear Strength (Steel) | 17-24 N/mm² |
| Lap Shear Strength (Aluminum) | 2-11 N/mm² |
| Environmental Resistance | |
| Heat Resistance (up to 100°C) | Retains ~75% strength after 5000 hrs |
| Chemical Resistance | Good resistance to motor oil, gasoline, ethanol, and isopropanol |
| Sterilization Resistance | Maintains bond strength after EtO, Gamma, and 1 cycle of autoclave sterilization |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
