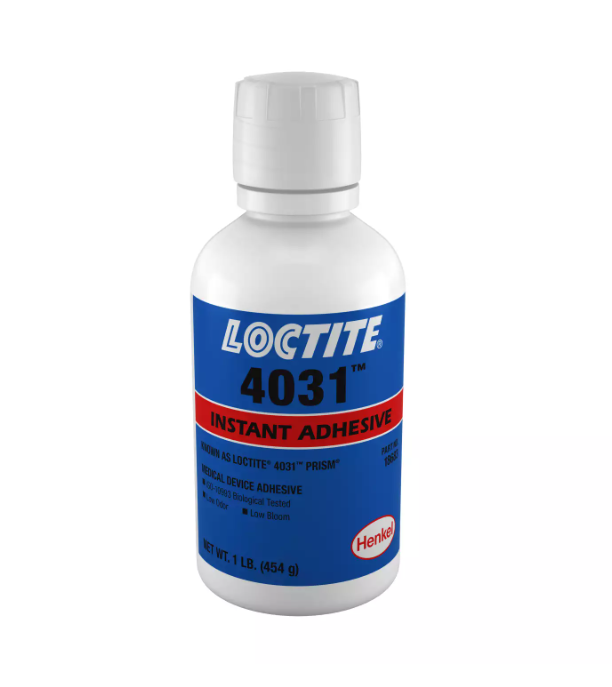

LOCTITE® 4031™ is a high-viscosity, alkoxyethyl cyanoacrylate adhesive with low odor and low blooming properties. It is particularly suited for applications requiring vapor control, such as medical device assembly. It complies with Henkel’s ISO 10993 biocompatibility test protocols.
| Property | Value |
|---|---|
| Appearance | Transparent, colorless to pale yellow liquid |
| Viscosity (25°C) | 1,100 – 1,650 mPa·s |
| Specific Gravity (25°C) | 1.1 |
| Substrate | Fixture Time (seconds) |
|---|---|
| Mild Steel (degreased) | 30 – 70 |
| Aluminum (degreased) | 5 – 20 |
| Zinc Dichromate | 60 – 180 |
| Neoprene | <5 |
| Nitrile Rubber | <5 |
| ABS | 20 – 60 |
| PVC | 20 – 50 |
| Polycarbonate | 20 – 60 |
| Phenolic | 30 – 60 |
| Property | Value |
|---|---|
| Glass Transition Temperature | 150°C |
| Coefficient of Thermal Expansion | 100×10⁻⁶ K⁻¹ |
| Coefficient of Thermal Conductivity | 0.1 W/(m·K) |
| Dielectric Strength | 25 kV/mm |
| Volume Resistivity | 10¹⁵ Ω·cm |
| Test | Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|---|
| Lap Shear Strength | Steel (grit blasted) | 14 – 22 | 2,030 – 3,190 |
| Aluminum (etched) | 9 – 15 | 1,305 – 2,175 | |
| Zinc Dichromate | 4 – 10 | 580 – 1,450 | |
| ABS | 6 – 20 | 870 – 2,900 | |
| PVC | 2 – 8 | 290 – 1,160 | |
| Polycarbonate | 3 – 10 | 435 – 1,450 | |
| Phenolic | 5 – 15 | 725 – 2,175 | |
| Tensile Strength | Steel (grit blasted) | 10 – 25 | 1,450 – 3,625 |
| Buna-N | 5 – 15 | 725 – 2,175 |
| Environment | Temperature | Strength Retention (%) |
|---|---|---|
| Motor Oil (MIL-L-46152) | 40°C | 65 – 75% |
| Gasoline | 22°C | 75 – 100% |
| Ethanol | 22°C | 95 – 100% |
| Isopropanol | 22°C | 90% |
| Freon TA | 22°C | 100% |
| Heat/Humidity 95% RH | 40°C | 0 – 15% |
| Heat/Humidity 95% RH on Polycarbonate | 40°C | 100% |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
