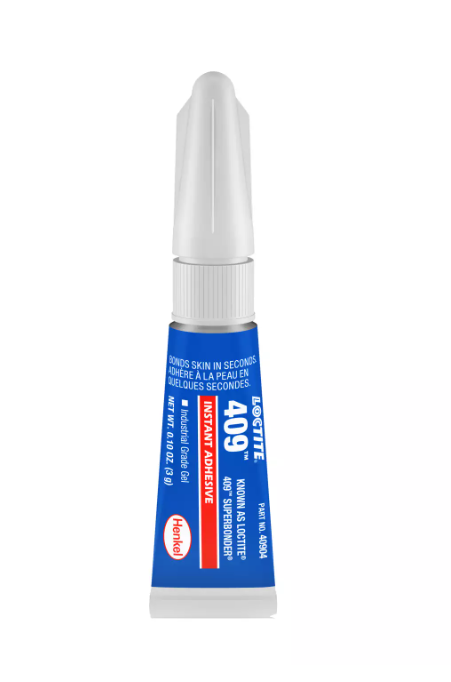

LOCTITE® 409 is a high-viscosity, ethyl cyanoacrylate adhesive gel designed for bonding plastics, rubbers, and metals. It provides strong adhesion and prevents adhesive flow on vertical surfaces due to its gel consistency. The adhesive cures with humidity and does not require mixing.
| Property | Value |
|---|---|
| Appearance (Uncured) | Clear to slightly cloudy gel |
| Specific Gravity @ 25°C | 1.05 |
| Flash Point | Refer to SDS |
| Viscosity (Brookfield RVF, 25°C, Spindle TC, 20 rpm) | 15,000 to 40,000 mPa·s |
| Cure Mechanism | Humidity |
| Substrate | Fixture Time (seconds) |
|---|---|
| Steel (degreased) | 50 – 100 |
| Aluminum | 5 – 30 |
| Neoprene, Nitrile Rubber | 15 – 25 |
| ABS | 20 – 60 |
| PVC | 50 – 100 |
| Polycarbonate | 40 – 80 |
| Phenolic | 20 – 50 |
| Property | Value |
|---|---|
| Coefficient of Thermal Expansion | 80 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity | 0.1 W/(m·K) |
| Glass Transition Temperature | 120°C |
| Volume Resistivity | 10¹⁵ Ω·cm |
| Dielectric Breakdown Strength | 25 kV/mm |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Steel (grit blasted) | 18 – 26 | 2,610 – 3,770 |
| Aluminum (etched) | 11 – 19 | 1,595 – 2,755 |
| ABS | >6 | >870 |
| PVC | >6 | >870 |
| Polycarbonate | >5 | >725 |
| Phenolic | 5 – 15 | 725 – 2,175 |
| Neoprene, Nitrile | >10 | >1,450 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
