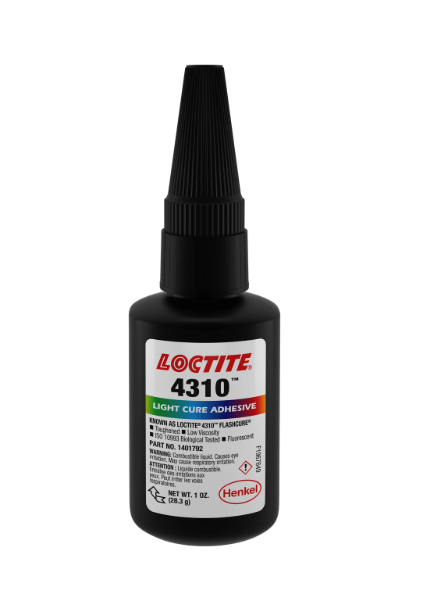

• Item Name: LOCTITE® 4310™
• Manufacturer: Henkel
• Technologies: Cyanoacrylate/UV
• Color: Transparent, light yellow-green to dark blue-green liquid
• Cure Type: Ultraviolet (UV) / Visible light; Secondary Cure: Humidity
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 4310™ is a one-part, UV/visible light-curable cyanoacrylate adhesive designed for bonding plastics, rubbers, and metals. It offers rapid surface curing, minimal blooming, and secondary humidity cure. The product fluoresces under UV light and is suitable for medical device assembly, having been tested per ISO-10993 biocompatibility standards.
| Property | Value |
|---|---|
| Uncured Properties | |
| Specific Gravity | 1.06 |
| Viscosity (mPa·s) | 100 to 250 |
| Curing Properties | |
| Primary Cure Mechanism | UV / Visible Light |
| Secondary Cure | Humidity |
| Depth of Cure (100 mW/cm² @ 365 nm) | Measured via different light sources |
| Fixture Time (on ABS) | <5 sec |
| Fixture Time (on Steel) | 20 to 30 sec |
| Cured Properties | |
| Shore Hardness (D) | 84 |
| Glass Transition Temp. | 102°C |
| Tensile Strength (N/mm²) | 50 (7,250 psi) |
| Elongation at Break | 7.3% |
| Adhesive Strength | |
| Polycarbonate Shear Strength | ≥9 N/mm² (1,305 psi) |
| Acrylic to Acrylic | 14.4 N/mm² (2,090 psi) |
| Polycarbonate to Steel | 12.6 N/mm² (1,830 psi) |
| Environmental Resistance | |
| Water & Humidity Resistance | 100% strength retention |
| Heat Aging (60°C, 8 weeks) | 50-90% strength retention |
| Sterilization Resistance (Gamma, ETO, Autoclave) | Retains 40-70% strength |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
