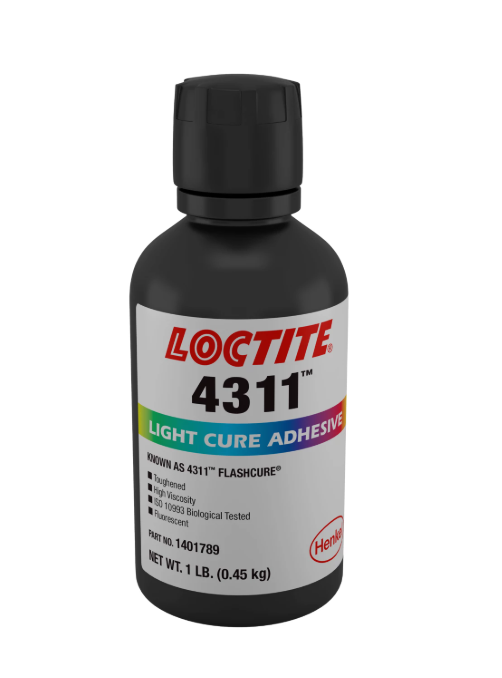

• Item Name: LOCTITE® 4311™
• Manufacturer: Henkel
• Technologies: Cyanoacrylate/UV (Ethyl cyanoacrylate with photoinitiator)
• Color: Transparent, light yellow-green to dark blue-green liquid
• Cure Type: Ultraviolet (UV) / Visible light; Secondary Cure: Humidity
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 4311™ is a one-part cyanoacrylate adhesive with UV/visible light curing and secondary humidity curing. It is designed for rapid fixturing, fillet cure, and surface cure, minimizing blooming and eliminating the need for solvent-borne accelerators. It is suitable for bonding plastics, rubbers, and metals and is compliant with ISO 10993 biocompatibility standards for medical device assembly.
| Property | Value |
|---|---|
| Appearance | Transparent, light yellow-green to dark blue-green liquid |
| Specific Gravity @ 25°C | 1.06 |
| Viscosity (mPa·s) | 600 – 1,500 |
| Fluorescence | Positive under UV light |
| Cure Method | Depth of Cure (mm) | Cure Time (s) |
|---|---|---|
| UV (365 nm, 100 mW/cm²) | 6 | 60 |
| LED (405 nm, 100 mW/cm²) | 7 | 60 |
| Tack-Free Time (365 nm, 30 mW/cm²) | ≤10 |
| Property | Value |
|---|---|
| Glass Transition Temperature (°C) | 102 |
| Shore Hardness (D) | 84 |
| Tensile Strength (MPa) | 50 |
| Elongation at Break (%) | 5.2 |
| Tensile Modulus (MPa) | 1,860 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Acrylic to Acrylic | 14.2 | 2,050 |
| Polycarbonate to Polycarbonate | 22.4 | 3,260 |
| Polycarbonate to Steel (grit blasted) | 13 | 1,880 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
