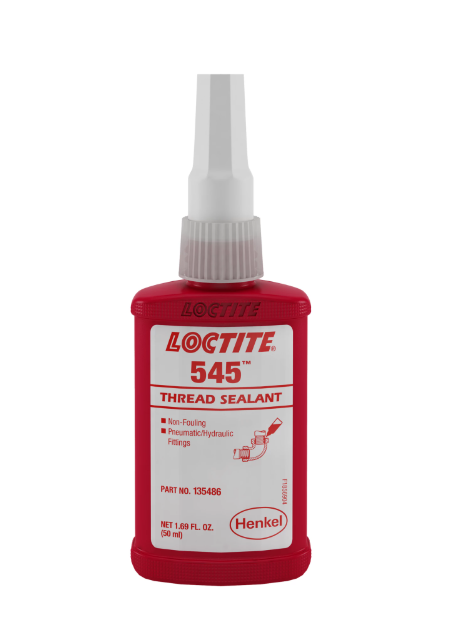

• Item Name: LOCTITE® 545
• Manufacturer: Henkel
• Technologies: Acrylic (Methacrylate ester)
• Color: Purple liquid
• Cure Type: Anaerobic; Secondary Cure: Activator
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 545 is an anaerobic acrylic-based thread-sealing adhesive designed for locking and sealing metal pipes and fittings. It prevents loosening and leakage caused by shock and vibration. The product offers lubricity for easy assembly. It cures in the absence of air between close-fitting metal surfaces.
| Property | Value |
|---|---|
| Appearance | Purple liquid |
| Specific Gravity @ 25°C | 1.02 |
| Viscosity (mPa·s) | 9,000 – 20,000 |
| Cure Mechanism | Anaerobic |
| Secondary Cure | Activator |
| Property | Value |
| Coefficient of Thermal Expansion (K-1) | 80×10⁻⁶ |
| Thermal Conductivity (W/m·K) | 0.1 |
| Specific Heat (kJ/kg·K) | 0.3 |
| Breakaway Torque (M10 Steel Nuts & Bolts) | 2 N·m (20 lb.in.) |
| Compressive Shear Strength (Steel Pins & Collars) | ≥1.5 N/mm² (220 psi) |
| Condition | % Initial Strength Retained |
| Motor Oil (125°C) | 100% |
| Unleaded Gasoline (22°C) | 95-100% |
| Brake Fluid (22°C) | 100% |
| Ethanol (22°C) | 90% |
| Acetone (22°C) | 95% |
| Water/Glycol 50/50 (87°C) | 100% |
| E85 Ethanol Fuel (22°C) | 90-120% |
| B100 Bio-Diesel (22°C) | 80-85% |
| DEF (AdBlue®) (22°C) | 115-120% |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
