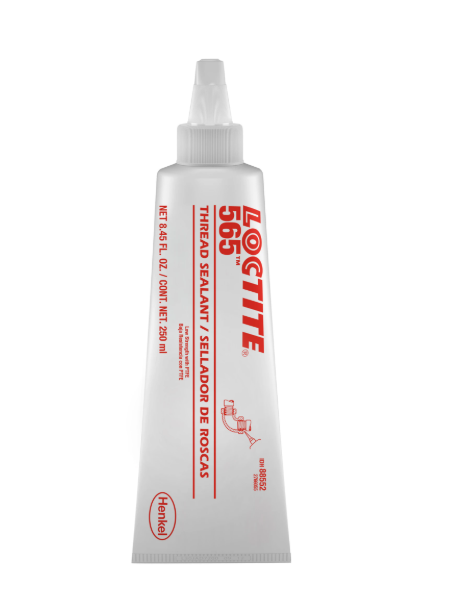

• Item Name: LOCTITE® 565 ™
• Manufacturer: Henkel
• Technologies: Acrylic (Methacrylate ester)
• Color: White to off-white paste
• Cure Type: Anaerobic; Secondary Cure: Activator
• Package Size: Contact to Techniq VNfor details.
• Shelf Life: Contact to Techniq VN for details.
| Property | Value |
|---|---|
| Specific Gravity (@25°C) | 1.1 |
| Viscosity (mPa·s) | 175,000 – 525,000 |
| Flash Point | See SDS |
| Property | Value |
| Coefficient of Thermal Expansion | 80 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity | 0.1 W/(m·K) |
| Specific Heat | 0.3 kJ/(kg·K) |
| Test | Value | Standard |
| Breakaway Torque (3/8 NPT steel pipe tees) | 5 N·m (45 lb.in.) | ASTM D 6396 |
| Breakaway Torque (3/8 x 24 steel nuts & bolts) | ≥2.8 N·m (25 lb.in.) | ISO 10964 |
| Compressive Shear Strength | ≥1 N/mm² (145 psi) | ISO 10123 |
| Test Environment | Temp (°C) | % Strength Retained (720 h) |
| Motor Oil (MIL-L-46152) | 87 | 100% |
| Unleaded Gasoline | 87 | 100% |
| Phosphate Ester | 87 | 100% |
| Brake Fluid | 87 | 92% |
| Distilled Water | 87 | 100% |
