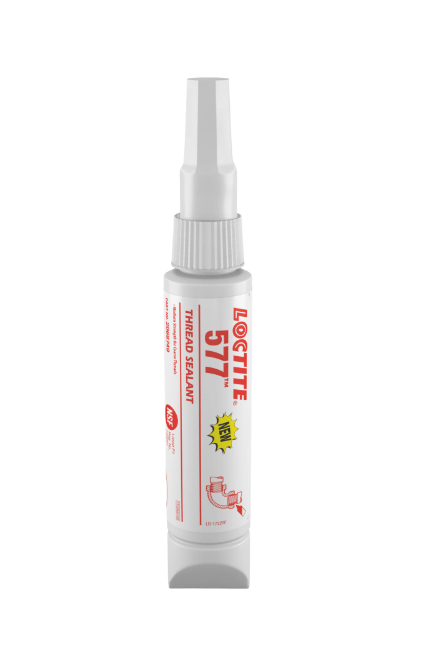

• Item Name: LOCTITE® 577™
• Manufacturer: Henkel
• Technologies: Acrylic
• Color: Yellow paste
• Cure Type: Anaerobic with secondary cure (Activator)
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 577™ is a high-viscosity, thixotropic, anaerobic thread sealant designed for locking and sealing metal threaded pipes and fittings. It is effective on active metals (e.g., brass, copper) and passive substrates (e.g., stainless steel, plated surfaces) without requiring surface activation. The product provides excellent resistance to shock, vibration, and minor surface contamination from oils.
| Property | Value |
|---|---|
| Uncured Properties | |
| Chemical Type | Dimethacrylate ester |
| Appearance | Yellow paste |
| Specific Gravity @ 25°C | 1.1 |
| Viscosity @ 25°C (mPa·s) | 100,000 (2.5 rpm), 24,500 (20 rpm) |
| Fluorescence | Positive under UV light |
| Cured Properties | |
| Specific Heat (kJ/kg·K) | 2.0 |
| Tensile Strength (ISO 37) | 1.3 MPa (190 psi) |
| Tensile Modulus (ISO 37) | 168 MPa (24,350 psi) |
| Performance on Threaded Fasteners (ISO 10964) | |
| Breakaway Torque (M10 Steel) | 33 N·m (295 lb·in) |
| Prevail Torque (M10 Steel) | 2.5 N·m (22 lb·in) |
| Compressive Shear Strength (Steel Pins & Collars) | 5 N/mm² (725 psi) |
