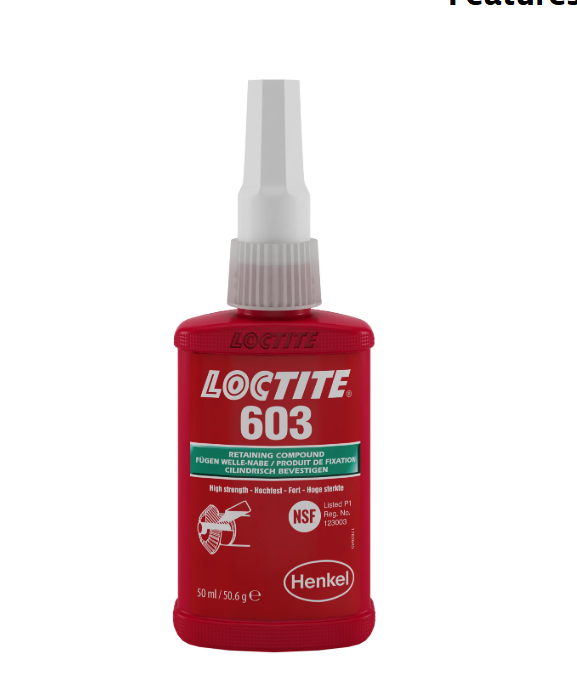

• Item Name: LOCTITE® 603
• Manufacturer: Henkel
• Technologies: Acrylic (Urethane Methacrylate)
• Color: Green Liquid
• Cure Type: Anaerobic, Secondary Cure with Activator
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® 603 is a high-strength anaerobic retaining compound designed for bonding cylindrical fitting parts, especially where surface cleanliness is not assured. It prevents loosening and leakage due to shock and vibration. The product fluoresces under UV light and offers a secondary cure with an activator. It is NSF P1 registered for use in food processing areas where there is no food contact.
| Property | Value |
|---|---|
| Appearance | Green liquid |
| Specific Gravity @ 25°C | 1.1 |
| Viscosity (Brookfield RVT, 25°C, Spindle 1, 20 rpm) | 100 – 150 mPa·s (cP) |
| Flash Point | See SDS |
| Property | Value |
| Coefficient of Thermal Expansion (ISO 11359-2) | 80×10⁻⁶ K⁻¹ |
| Thermal Conductivity (ISO 8302) | 0.1 W/(m·K) |
| Specific Heat | 0.3 kJ/(kg·K) |
| Property | Value |
| Compressive Shear Strength (Steel) | ≥22.5 N/mm² (3,260 psi) |
| Compressive Shear Strength (Steel, 30 min @ 22°C) | ≥13.5 N/mm² (1,960 psi) |
| Environment | Temperature (°C) | 100h | 500h | 1000h |
| Motor Oil (MIL-L-46152) | 125 | 100% | 100% | 100% |
| Unleaded Petrol | 22 | 100% | 90% | 85% |
| Brake Fluid | 22 | 100% | 90% | 80% |
| Water/Glycol 50/50 | 87 | 100% | 90% | 80% |
| Ethanol | 22 | 100% | 100% | 75% |
| Acetone | 22 | 90% | 90% | 90% |
