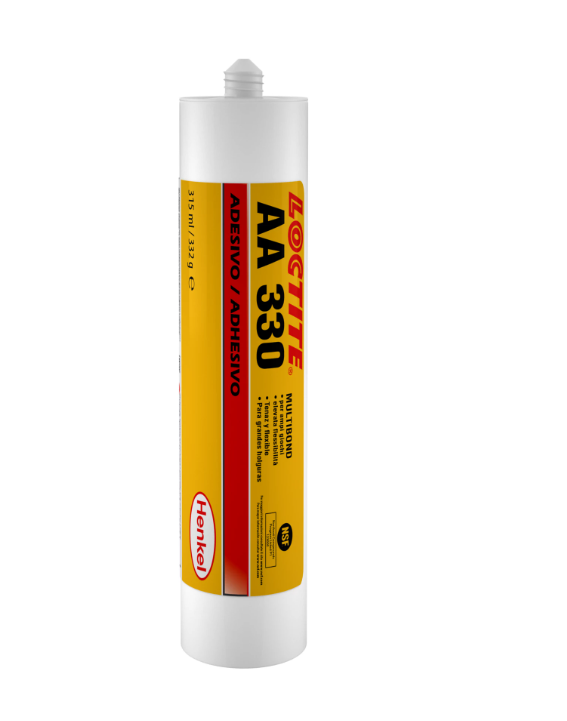

LOCTITE® AA 330 is a high-viscosity, one-component acrylic adhesive designed for bonding metal, wood, ferrite, ceramic, and plastic materials. It cures with an activator and is commonly used in applications such as tool handles, appliances, sporting goods, and decorative trim. The product is NSF registered for use in non-food-contact areas in food processing environments.
| Property | Value |
|---|---|
| Specific Gravity @ 25°C | 1.05 |
| Viscosity (Brookfield RVT, 25°C) | 45,000 – 90,000 mPa·s |
| Viscosity (EN 12092 – SV, 25°C) | 30,000 – 70,000 mPa·s |
| Property | Value |
|---|---|
| Coefficient of Thermal Expansion (ISO 11359-2) | 151 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity (ISO 8302) | 0.1 W/(m·K) |
| Specific Heat | 0.3 kJ/(kg·K) |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Mild Steel (grit blasted) – 1 side activator | 15 – 30 | 2,175 – 4,350 |
| Mild Steel (grit blasted) – 2 side activator | ≥16.5 | ≥2,390 |
| Property | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Tensile Strength | 12 – 22 | 1,740 – 3,190 |
| Environment | % Strength Retention (350h) | % Strength Retention (720h) |
|---|---|---|
| Acetone | 10 | 10 |
| Motor Oil (MIL-L-46152) | 90 | 66 |
| Unleaded Gasoline | 20 | 20 |
| Phosphate Ester | 93 | 75 |
| Water/Glycol 50/50 | 60 | 60 |
