Item Name: LOCTITE® AA 3301™
Manufacturer: Henkel
Technologies: Acrylated urethane, UV/Visible light cure
Color: Transparent liquid
Cure Type: Ultraviolet (UV) / Visible light
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.

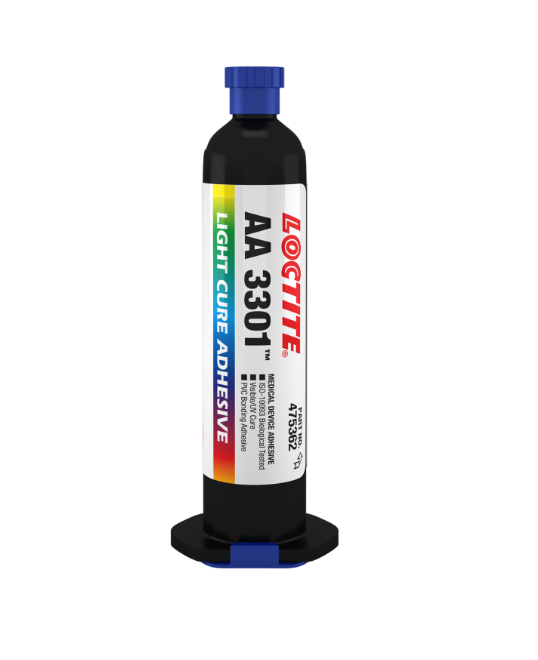

LOCTITE® AA 3301™ is a transparent, low-viscosity, one-component acrylated urethane adhesive that cures rapidly under UV or visible light. It is designed for bonding rigid or flexible PVC to polycarbonate, enabling fast, precise assembly of components with close tolerances. The cured adhesive offers excellent load-bearing and shock-absorbing properties, good flexibility, and reliable adhesion to plastics, glass, and metals. It is ISO-10993 qualified, making it suitable for disposable medical devices.
Bonding rigid and flexible PVC to polycarbonate.
Assembly of medical devices requiring ISO-10993 compliance.
Adhesion to plastics, glass, and metals for high-speed production.
Situations requiring enhanced shock absorption and stress-crack resistance.
| Property | Still Not Mixed (Uncured) | After Mixed/Cured |
|---|---|---|
| Appearance | Transparent liquid | Clear solid |
| Specific Gravity (25 °C) | 1.13 | – |
| Viscosity (25 °C, mPa·s) | 90–210 | – |
| Refractive Index | 1.48 | 1.51 |
| Shore Hardness (D) | – | 69 |
| Tensile Strength | – | 19 N/mm² (2,700 psi) |
| Tensile Modulus | – | 738 N/mm² (107,000 psi) |
| Elongation at Break | – | 50% |
| Water Absorption | – | 3% (2 h boiling) |
| Volume Resistivity | – | 9.2×10¹⁴ Ω·cm |
| Dielectric Breakdown Strength | – | 34 kV/mm |
| Lap Shear Strength (Polycarbonate) | – | ~5 N/mm² (substrate failure) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
