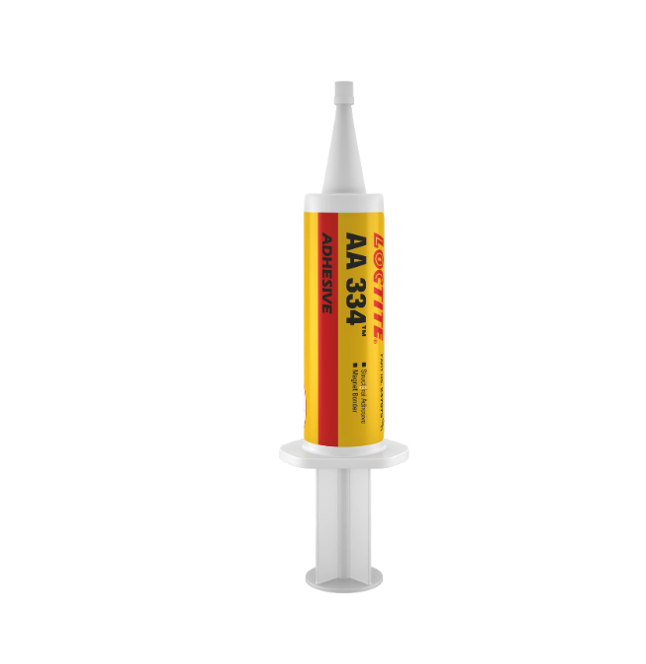

Item Name: LOCTITE® AA 334™ (Known as LOCTITE® 334™)
Manufacturer: Henkel
Technologies: Acrylic, Modified Acrylic, One-component
Color: Light yellow liquid
Cure Type: Activator / Heat
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for detail
LOCTITE® AA 334™ is a one-component modified acrylic adhesive with high viscosity and light-yellow appearance. It requires no mixing and cures with an activator or heat. Designed for motor magnet bonding, it produces durable bonds with excellent impact and peel resistance. The adhesive offers high hardness, good tensile properties, and maintains reliable performance under varied environmental conditions.
Securing permanent magnets in motor assemblies.
Structural bonding where high peel and impact resistance are required.
Heat-assisted curing for assemblies where surface priming is not preferred.
Not recommended for plastics prone to stress cracking or for use in oxygen-rich systems.
| Property | Condition | Value |
|---|---|---|
| Uncured | Appearance | Light yellow liquid |
| Viscosity (25 °C, Spindle TB, 20 rpm) | 50,000–120,000 mPa·s | |
| Specific Gravity (25 °C) | 1.05 | |
| Cure Method | Activator 7387™ / Heat | |
| Cured | Shore Hardness (D) | 70 |
| Tensile Modulus (ISO 527-2) | 1,250 N/mm² (183,000 psi) | |
| Tensile Strength at Break | 21 N/mm² (3,100 psi) | |
| Lap Shear Strength (Steel, 0.05 mm gap) | ≥11 N/mm² (≥1,595 psi) | |
| Lap Shear Strength (Steel, 0.5 mm gap) | ≥3.5 N/mm² (≥505 psi) | |
| 180° Peel Strength (Steel) | 4.4 N/mm (25 lb/in) |
