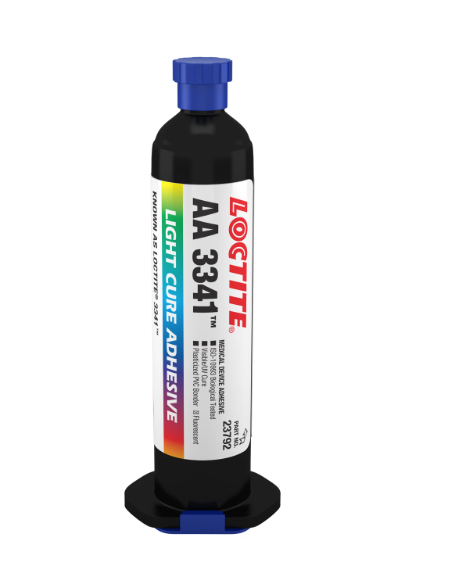

• Item Name: LOCTITE® AA 3341™
• Manufacturer: Henkel
• Technologies: Acrylic, Acrylated Urethane
• Color: Transparent light yellow
• Cure Type: Ultraviolet (UV) / Visible Light
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
| Property | Value |
|---|---|
| Uncured Properties | |
| Specific Gravity @ 25°C | 1.09 |
| Viscosity (Brookfield RVT) | 525 mPa·s (Spindle 1, 10 rpm) |
| Curing Performance | |
| UV Fixture Time (100 mW/cm², 365 nm) | 5 sec |
| Tack Free Time (100 mW/cm², 365 nm) | 8 sec |
| UV Depth of Cure | 4.0 mm |
| Cured Properties | |
| Shore Hardness (D) | 27 |
| Refractive Index | 1.5 |
| Elongation @ Break (%) | 220 |
| Tensile Strength (N/mm²) | 15 (2,200 psi) |
| Tensile Modulus (N/mm²) | 25 (3,600 psi) |
| Electrical Properties | |
| Surface Resistivity (Ω·cm) | 2.30 × 10¹⁵ |
| Volume Resistivity (Ω·cm) | 9.62 × 10¹⁴ |
| Dielectric Breakdown Strength | 31.5 kV/mm |
| Adhesion Strength | |
| Block Shear Strength (Polycarbonate to PVC) | 6.2 N/mm² (899 psi) |
| Environmental Resistance | |
| Water Immersion @ 49°C | 40% strength retention |
| Water Immersion @ 87°C | 20% strength retention |
| Heat/Humidity (95% RH @ 38°C) | 60% strength retention |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
