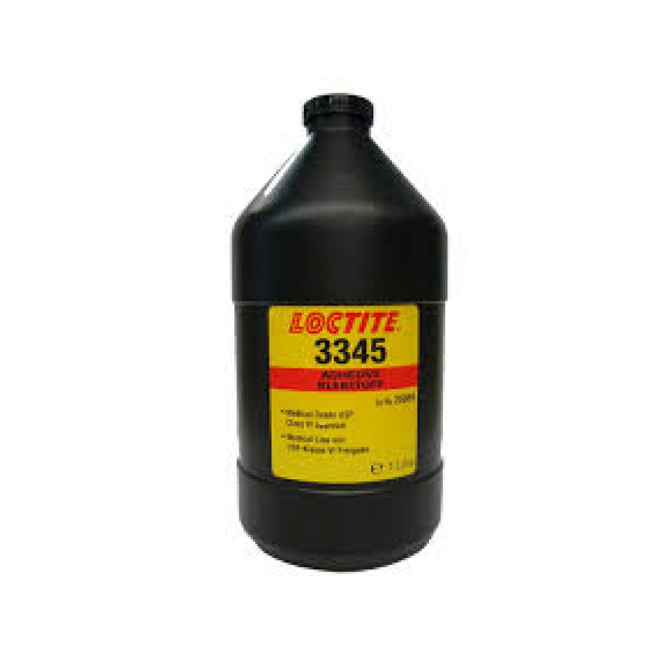

Item Name: LOCTITE® AA 3345™ (Known as LOCTITE® 3345™)
Manufacturer: Henkel
Technologies: Acrylic, Urethane Methacrylate, One-component
Color: Clear, light straw colored liquid
Cure Type: Ultraviolet (UV) / Visible light
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® AA 3345™ is a one-component, UV-curing acrylic adhesive based on urethane methacrylate chemistry. It appears as a clear, light straw-colored liquid with medium viscosity and cures rapidly under ultraviolet light. The product is designed for high-speed bonding processes, offering strong adhesion between glass and metals. Notably, it is formulated for medical device assembly, with qualification under Henkel’s ISO 10993 protocol, ensuring compliance for biocompatibility and sterilization requirements.
Bonding glass to metal components.
Assembly of disposable and reusable medical devices.
Situations requiring resistance to sterilization methods (EtO, Gamma radiation, and limited steam autoclave cycles).
Industrial applications where UV-curing, medium viscosity, and durability are advantageous.
| Property | Condition | Value |
|---|---|---|
| Uncured Material | ||
| Specific Gravity @ 25 °C | — | 1.0 |
| Viscosity (Brookfield RVT, Spindle 3, 20 rpm, 25 °C) | — | 1,000–2,000 mPa·s |
| Appearance | — | Clear, light straw-colored liquid |
| Fluorescence | — | Negative |
| Curing Performance | ||
| Tack Free Time | 100 mW/cm² @ 365 nm | 20–60 s |
| Fixture Time (Glass) | 6 mW/cm² @ 365 nm | 20–60 s |
| 10 mW/cm² @ 365 nm | 15–25 s | |
| 100 mW/cm² @ 365 nm | 5–15 s | |
| Depth of Cure | 100 mW/cm² @ 365 nm | ≥2.5 mm |
| Cured Material | ||
| Shore Hardness (ISO 868, D) | — | 70 |
| Thermal Expansion (ISO 11359-2) | — | 100 ×10⁻⁶ K⁻¹ |
| Thermal Conductivity (ISO 8302) | — | 0.1 W/m·K |
| Tensile Strength (Steel–Glass, ISO 6922) | — | ≥7 N/mm² (≥1,015 psi) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
Techniq Vietnam provides end-to-end materials and process solutions, integrating world-class technologies in adhesives, soldering, and thermal management.
Through partnerships with leading global brands, we deliver high-value materials, expert consulting, and optimized supply chains ensuring timely delivery, efficiency, and sustainable growth for our clients.
At Techniq, our mission is to connect cutting-edge materials, processes, and equipment with customer needs, enabling efficiency, reliability, and long-term value creation.
